1. Introduction to NTC Temperature Sensors
NTC (Negative Temperature Coefficient) temperature sensors are crucial in various applications, including automotive, HVAC, and consumer electronics. These sensors work by changing resistance according to temperature changes, making them essential for precise temperature measurements. The manufacturing of NTC temperature sensors in China has gained popularity due to cost-effectiveness, advanced technology, and skilled labor, meeting the increasing demand from global markets.
2. Materials Used in NTC Sensor Manufacturing
Manufacturing NTC temperature sensors involves several materials that influence performance. Common materials include:
- NTC Thermistor: Made from metal oxides, this component is essential for the sensor’s function.
- Lead Wires: Typically made of copper, these wires connect the thermistor to the circuit.
- Insulating Materials: Polyimide and epoxy resins ensure durability and insulation.
Materials Comparison Table
| Material Type | Advantages | Typical Usage |
|---|---|---|
| NTC Thermistor | High accuracy | Temperature sensing |
| Lead Wires | Conductive, flexible | Electrical connections |
| Insulating Materials | Heat-resistant | Housing protection |
3. Manufacturing Process
The manufacturing of NTC temperature sensors involves multiple steps to ensure high precision. The main steps are:
- Material Preparation: Sourcing and preparing high-purity metal oxides.
- Thermistor Formation: Mixing materials and shaping them into thermistors through pressing and sintering.
- Electrical Connection: Attaching lead wires to the thermistor, ensuring proper conductivity.
- Insulation Application: Coating the thermistor for protection against environmental conditions.
- Calibration: Testing sensors to ensure accuracy and reliability.

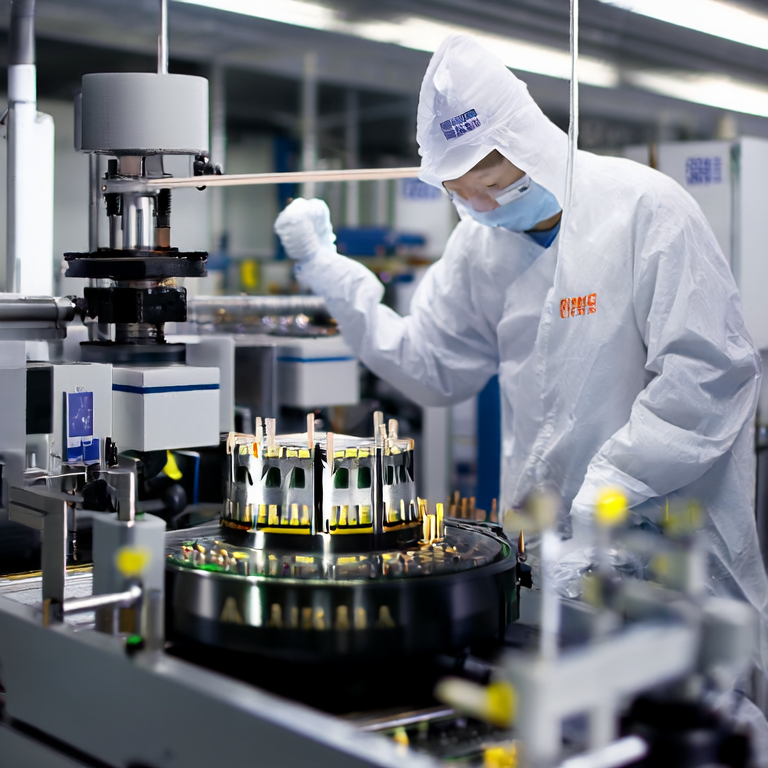

Manufacturing Flow Chart
4. Quality Control Measures
Quality control (QC) is vital in ensuring the reliability of NTC sensors. Key QC measures include:
- Raw Material Inspection: Verifying the quality of incoming materials before production.
- In-Process Testing: Conducting tests during different stages of manufacturing to catch defects early.
- Final Product Testing: Ensuring the finished sensors meet specified performance parameters.
5. Global Market Trends
The global market for NTC temperature sensors is expanding rapidly due to increasing demand in various industries. Key trends include:
- Smart Home Technologies: The rise of IoT devices leads to higher sensor applications.
- Automotive Applications: Increased use in electric vehicles for battery management.
- Healthcare Innovations: Demand for precise temperature monitoring in medical devices.
6. Conclusion and Future Insights
Manufacturing NTC temperature sensors in China represents a blend of advanced technology, high-quality materials, and efficient processes. As global demand continues to rise, leveraging these advantages will be crucial for staying competitive. Companies like Evergreen are poised to expand their presence in this growing market, promising innovation and quality. Understanding these processes can guide potential buyers in making informed purchasing decisions that meet their requirements.
