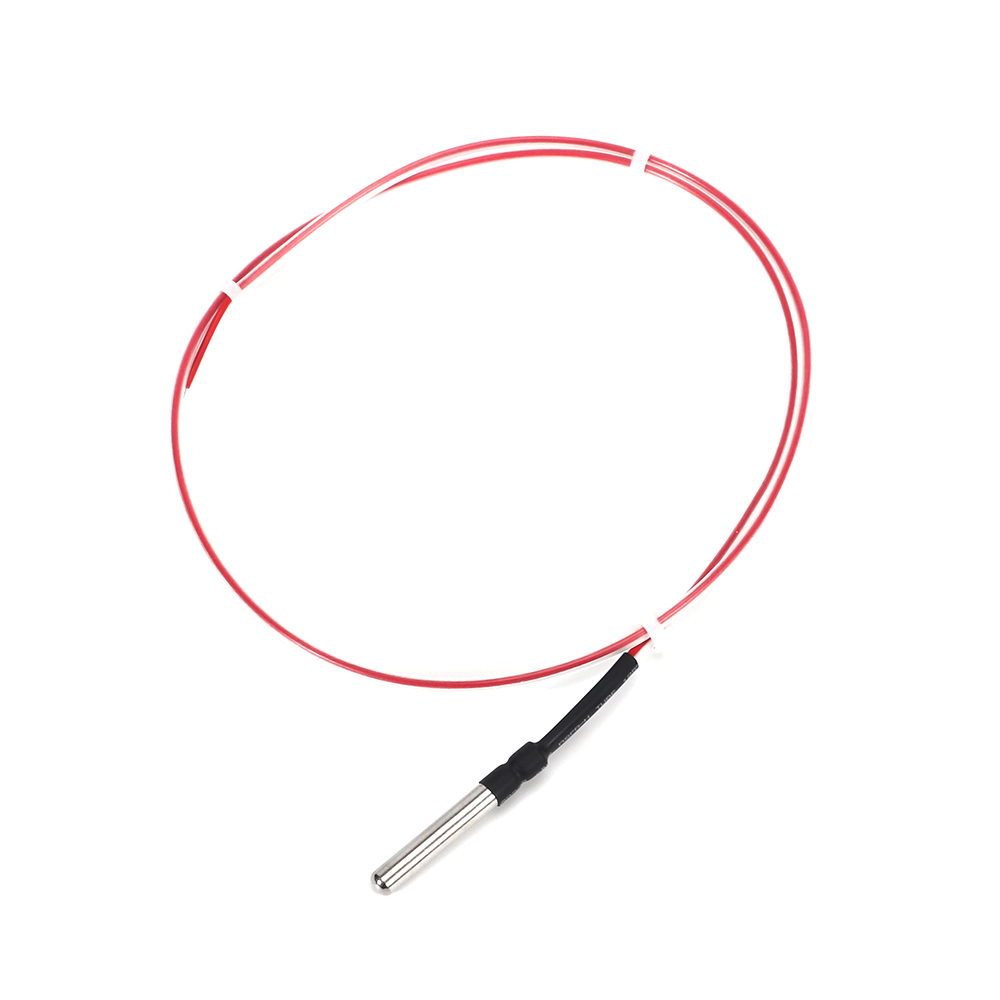

Temperature sensor for BMS systems

1. Introduction to Temperature Sensors in BMS Systems

Temperature sensors are critical components in Battery Management Systems (BMS), ensuring optimal performance and safety of battery packs. These sensors monitor the temperature of batteries to prevent overheating, improve lifespan, and manage charging cycles effectively. The rise in electric vehicles and renewable energy storage has made the integration of effective temperature sensors in BMS systems essential for stakeholders in these industries. Understanding the role of NTC (Negative Temperature Coefficient) temperature sensors specifically can significantly contribute to the operational efficiency and longevity of battery systems.

2. Key Functions of Temperature Sensors in Battery Management

Temperature sensors perform several vital functions in BMS, including:

1. Monitoring battery temperature to prevent thermal runaway and ensure safety.
2. Optimizing charging and discharging cycles to enhance battery life.
3. Providing data for real-time analytics and decision-making.

Monitoring Battery Temperature

By continuously checking temperature, sensors help protect batteries from damage due to excessive heat, preventing safety hazards.

Optimizing Battery Life

Effective temperature regulation can extend battery cycles, making sensors invaluable in energy management.

Real-time Data Provision

This data helps BMS systems make informed decisions, adapting operational parameters for efficiency and safety.

3. Types of Temperature Sensors Used in BMS

Several types of temperature sensors are utilized in BMS:

1. NTC Thermistors
2. RTD Sensors (Resistance Temperature Detectors)
3. Thermocouples

NTC Thermistors

NTC sensors offer high sensitivity and quick response times, making them suitable for precise temperature monitoring in BMS applications.

RTD Sensors

RTD sensors provide stable and accurate measurements over a wide temperature range but may be less responsive than NTC thermistors.

Thermocouples

While robust and suitable for extreme conditions, thermocouples may lack the precision required for specific BMS applications.

4. Benefits of NTC Temperature Sensors for BMS Systems

NTC temperature sensors are increasingly preferred for BMS applications due to a variety of advantages:

1. High accuracy and fast response times.
2. Compact size and easy integration into battery packs.
3. Cost-effectiveness compared to alternative sensor types.

High Accuracy

NTC sensors can accurately detect even small temperature fluctuations, critical for preventing battery failures.

Compact Size

Their small form factor makes NTC thermistors easy to install in space-constrained BMS environments.

Cost-effective Solutions

Competitive pricing allows manufacturers to utilize NTC sensors without significantly increasing production costs.

5. Choosing the Right Temperature Sensor

When selecting a temperature sensor for a BMS, consider the following factors:

1. Application requirements (temperature range and accuracy).
2. Environmental considerations (humidity, vibration).
3. Budget and availability.

Application Requirements

Understand the specific needs of your BMS application regarding temperature ranges.

Environmental Considerations

Factors such as moisture and vibrations can affect sensor performance and lifespan.

Budget and Availability

Consider the total cost of ownership and ensure supply chain reliability when choosing sensors.

6. Comparison of Different Temperature Sensors for BMS

The following table summarizes the characteristics of common temperature sensors used in BMS:

7. Conclusion

NTC temperature sensors are integral to the effective operation and safety of Battery Management Systems. Their accuracy, rapid response, and affordability make them a preferred choice among manufacturers in the energy sector. By understanding the nuances of temperature sensors, stakeholders can improve battery performance and longevity, ultimately leading to safer and more efficient energy solutions. Selecting the right sensor is crucial for optimizing BMS functionality and ensuring battery safety.
