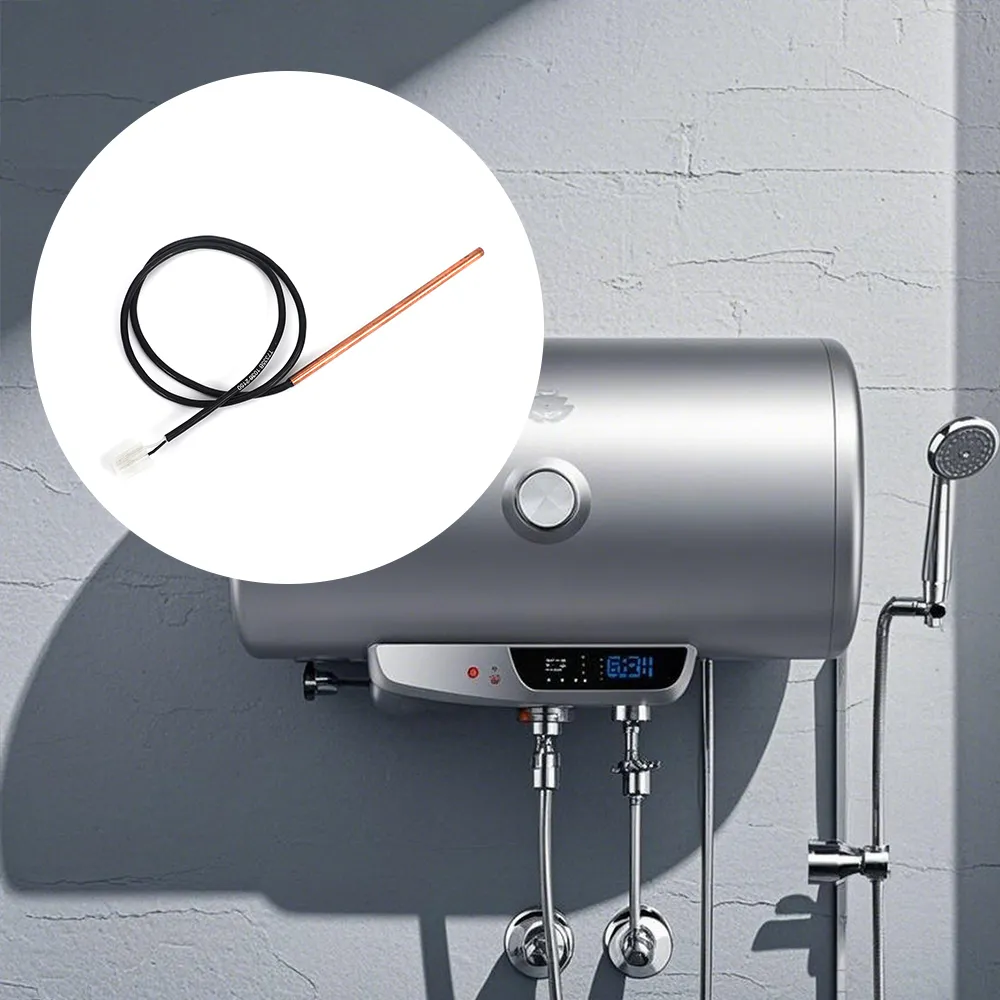

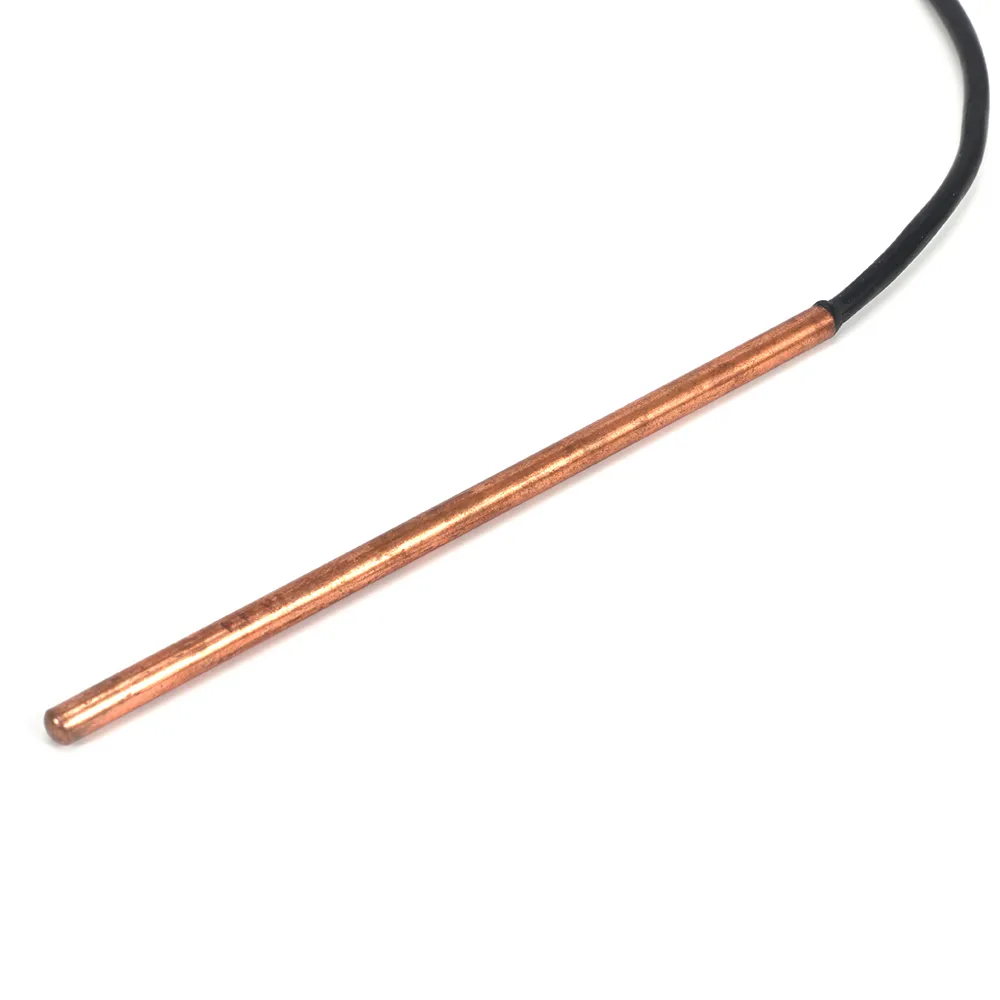

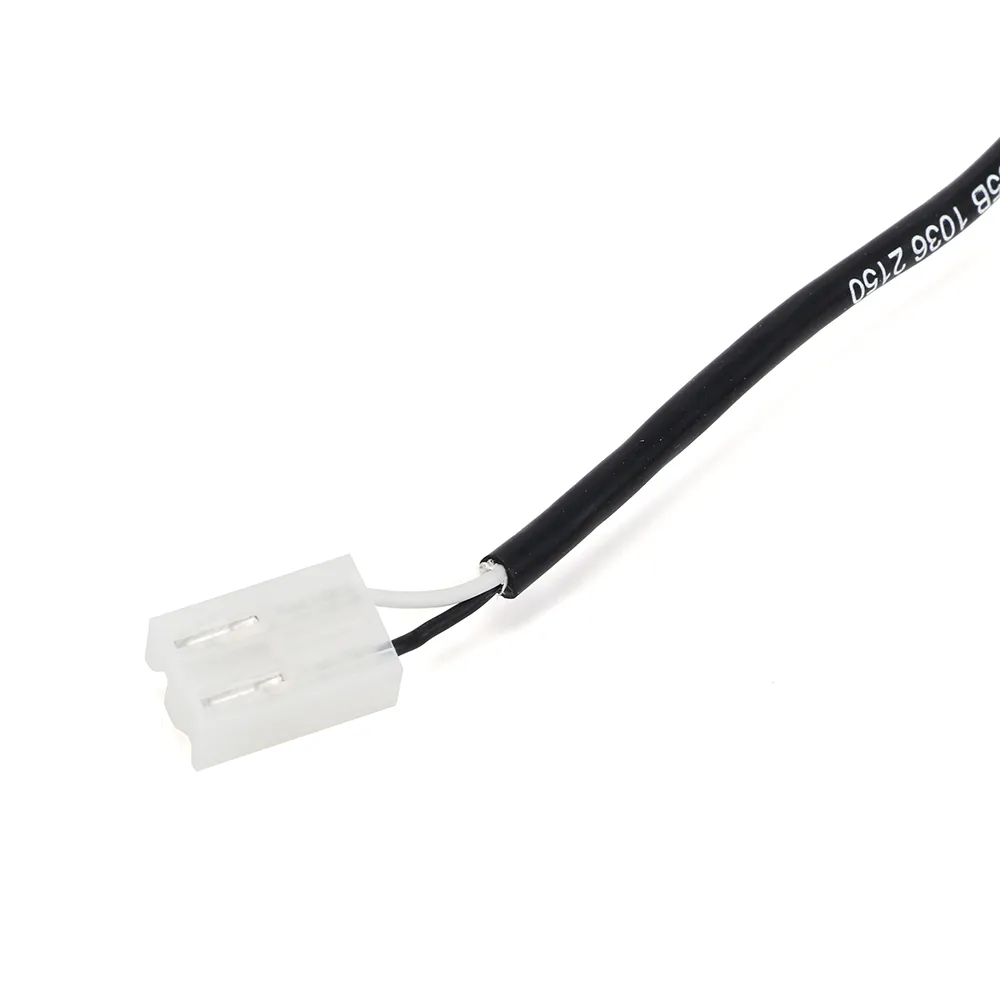

| Application | Water Heater Temperature Detection |
| Material | Copper |
| Sensor Head Dimension | φ4.8×115 mm |
| Operating Temperature Range | -20ºC ~ +100ºC |
| Accuracy | ±1% tolerance |
| Response Time | ≤10s (In liquid) |
| Thermal Time Constant | ≤10s (In liquid) |
| Withstand Voltage | AC1.5KV 0.3mA 3Sec |
| Insulation Resistance | DC500V ＞100MΩ |
| Resistance Value | R25=10KΩ, customizable to customer requirements |
| B Value | R25/50=3950KΩ, customizable to customer requirements |
