The EG-N006 NTC Temperature Sensor is designed for temperature detection and control in new energy systems, including battery packs and multi-point thermal monitoring applications.
Wth a wide operating temperature range and robust electrical insulation performance, this sensor is suitable for environments requiring reliable temperature feedback, system protection, and stable long-term operation.
As an OEM manufacturer, we provide custom NTC temperature sensor solutions tailored for integration into energy systems, control modules, and wiring assemblies.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | EG-N006 |
| Sensor Type | NTC Thermistor |
| Resistance @25°C | 10KΩ (Customizable) |
| B Value (25/50) | 3950K (Customizable) |
| Operating Temperature Range | -20°C to +200°C |
| Accuracy | ±1% |
| Response Time | ~30s (in air) |
| Thermal Time Constant | ~30s (in air) |
| Terminal Material | Pure Nickel Electrical Terminals |
| Terminal Inner Diameter | Ø5.2 mm |
| Withstand Voltage | AC 1500V |
| Insulation Resistance | ≥100MΩ (DC 500V) |
Key Features
Wide temperature range up to 200°C, suitable for high-temperature environments
Stable resistance characteristics for continuous monitoring
Pure nickel terminals for improved conductivity and durability
High electrical insulation and dielectric strength for safety-critical systems
Suitable for multi-point temperature detection and control architectures
Designed for integration into energy systems and electrical assemblies
Typical Applications
The EG-N006 is optimized for new energy and thermal management applications, including:
Temperature detection in new energy control systems

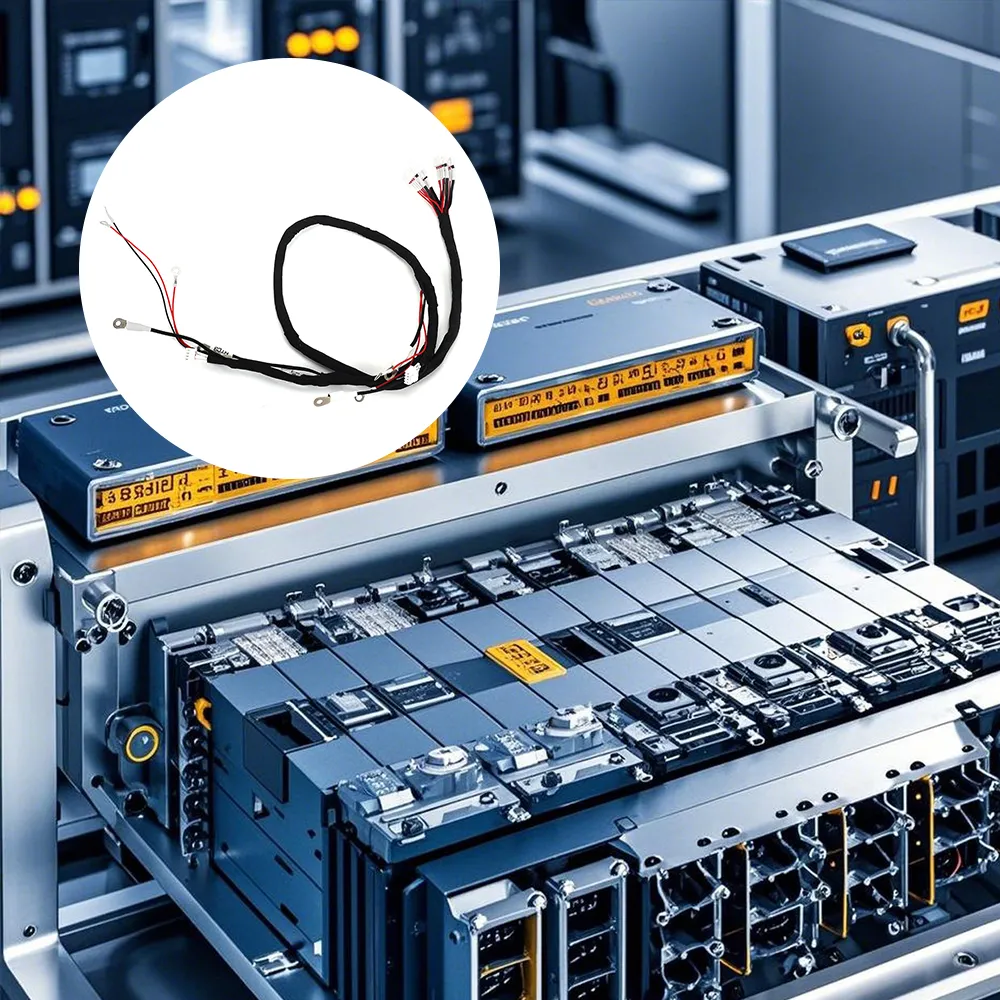

Battery pack temperature monitoring and protection systems
Multi-point temperature detection and control systems
Energy storage systems (ESS) thermal management
Electric vehicle battery modules and control units
Power electronics and inverter temperature monitoring
It is particularly suitable for applications requiring stable sensing under elevated temperatures and electrical safety conditions.
Custom NTC Temperature Sensor Solutions
As a professional OEM supplier, we provide customization for various system requirements:
Resistance value and B constant customization
Terminal size, shape, and material adjustment

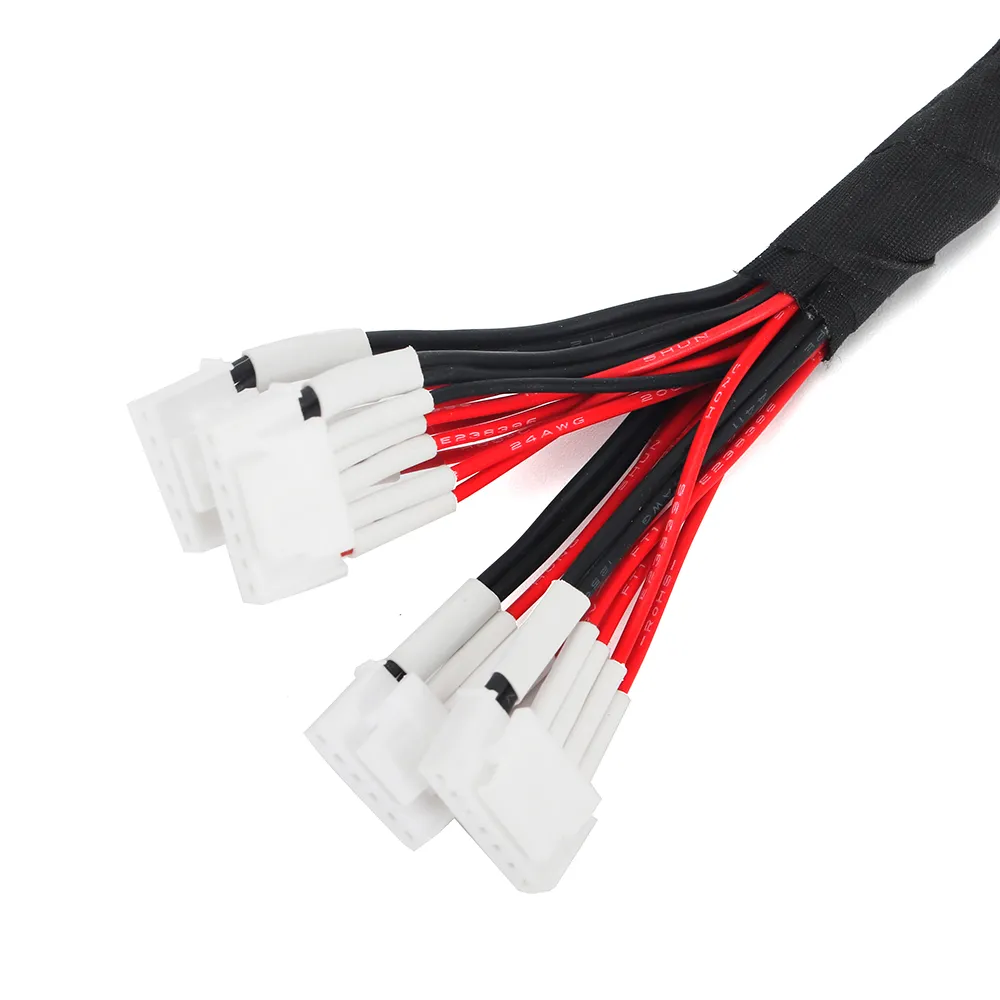

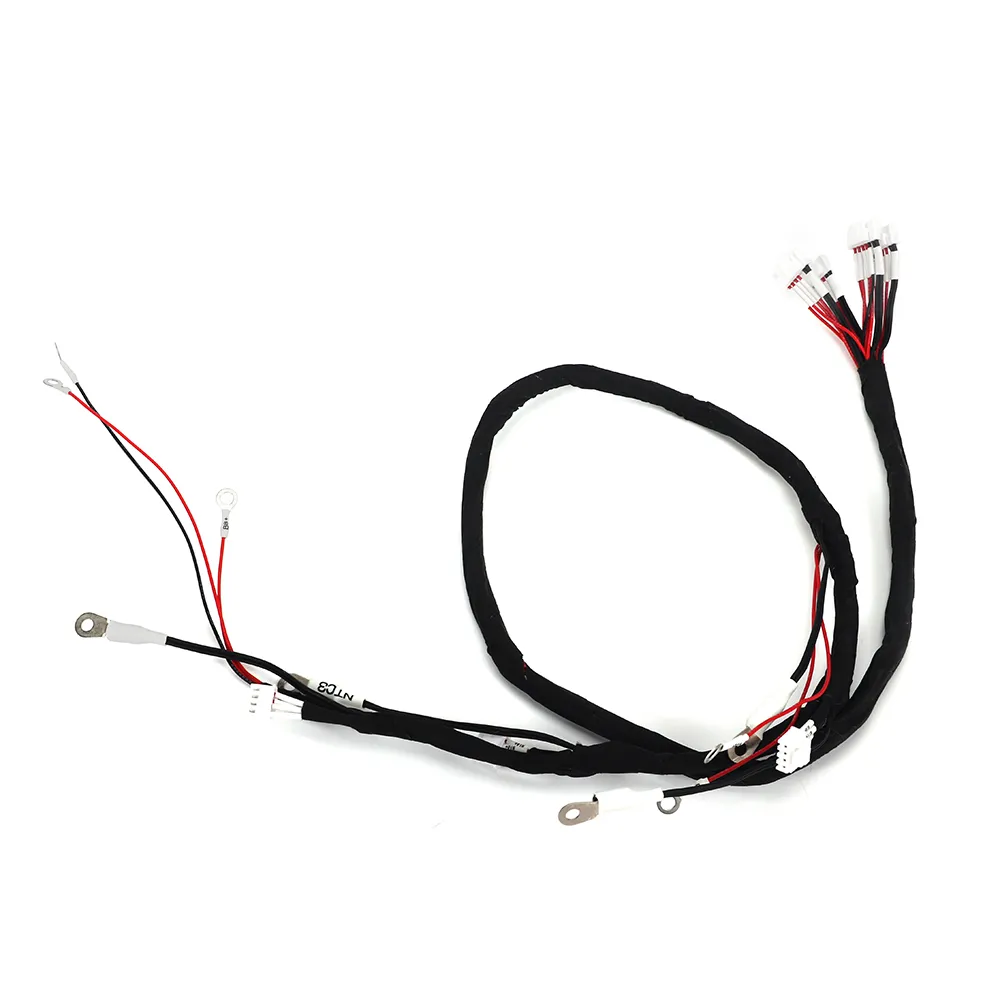

Integration into CCS wiring harnesses and battery assemblies
High-temperature resistant materials and insulation solutions
Multi-sensor array design for distributed temperature monitoring
Connector and cable integration
We support full development from sample validation to mass production, ensuring consistent performance across batches.

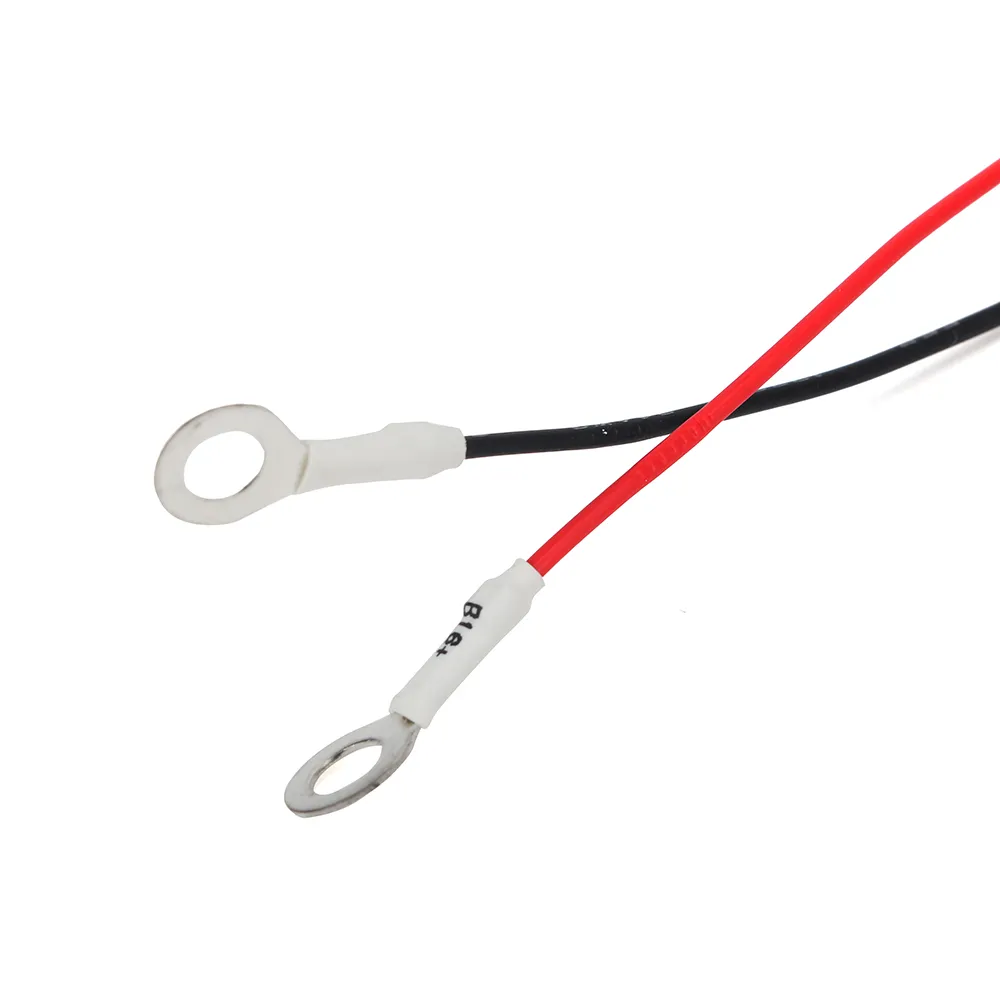

Mechanical Structure
Terminal type: Pure nickel electrical terminals
Inner hole diameter: Ø5.2 mm
Mounting method: Direct mounting / embedded into system structure
Output: Terminal connection or customized harness integration
Performance & Reliability
The EG-N006 is engineered for reliability in demanding environments:
High-voltage withstand capability (AC 1500V)
Insulation resistance ≥100MΩ ensures electrical safety
Thermal cycling and aging stability verification
Resistance consistency control for batch production
These features ensure stable operation in energy systems, battery modules, and industrial control environments.
How to Select This Sensor
The EG-N006 is recommended when your application requires:
Temperature detection in battery packs or energy systems
Multi-point monitoring in distributed control systems
Operation in medium to high temperature environments (up to 200°C)
Strong electrical insulation and safety performance
Reliable integration with terminals or electrical assemblies
For applications requiring faster response or waterproof design, customized solutions are available.
FAQ
Q: Can this sensor be used in battery packs?
A: Yes, it is designed for battery pack temperature monitoring and protection systems.
Q: Can terminal size be customized?
A: Yes, terminal dimensions and structures can be customized.
Q: Is this suitable for high-voltage systems?
A: Yes, it supports AC 1500V withstand voltage and high insulation resistance.
Q: Do you support multi-point sensing solutions?
A: Yes, we provide customized multi-sensor configurations for distributed monitoring.
Request Technical Support
For detailed specifications or OEM customization:
Request datasheets
Share your application or system requirements
Confirm sampling and production lead times
Our engineering team will support your project from design to production.
