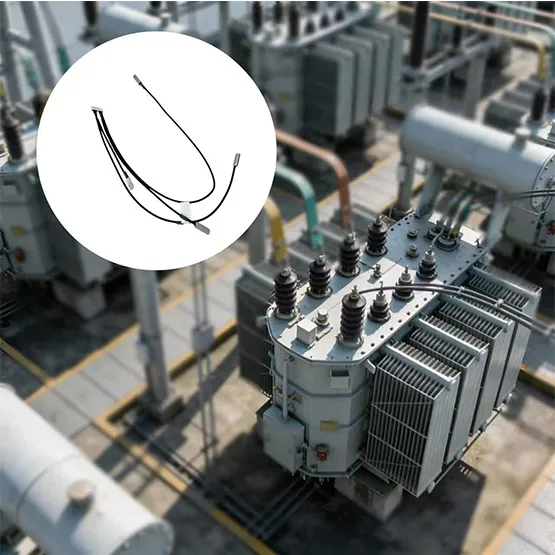

The EG-D002 Four-Point Digital Temperature Sensor is designed for fault monitoring in transmission systems, enabling early detection of abnormal temperature rise caused by overload, poor electrical contact, aging components, or environmental overheating.
With a multi-point sensing structure and digital temperature output, this sensor supports distributed temperature monitoring, helping improve system reliability and preventive maintenance efficiency.
As an OEM manufacturer, we provide custom digital temperature sensor solutions tailored for integration into transmission systems and industrial monitoring applications.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | EG-D002 |
| Sensor Type | Digital Temperature Sensor (Four-Point Detection) |
| Detection Points | 4-point temperature monitoring |
| Operating Temperature Range | -55°C to +125°C |
| Accuracy | ±0.5°C |
| Probe Material | SUS304 |
| Sensor Head Dimension | 20 × 7.5 × 3.6 mm (Customizable) |
Key Features
Four-point temperature detection for distributed monitoring
High accuracy (±0.5°C) for precise fault identification
Digital output for system integration and data processing
SUS304 housing for durability and environmental resistance
Compact structure suitable for installation in electrical systems
Enables early detection of abnormal temperature rise
Typical Applications
The EG-D002 is designed for temperature-based fault monitoring in electrical transmission systems, including:
Monitoring faults caused by overload conditions
Detection of overheating due to poor electrical contact
Temperature monitoring of aging components
Detection of environmental overheating in transmission systems
Electrical cabinets and power distribution equipment
Industrial monitoring systems requiring multi-point temperature feedback
It is particularly suitable for applications where localized temperature rise indicates potential system failure.
Custom Digital Temperature Sensor Solutions
As a professional OEM supplier, we offer customization based on system requirements:
Sensor head dimensions and structure adjustment
Integration into wiring harnesses or monitoring systems
Multi-point configuration and layout optimization

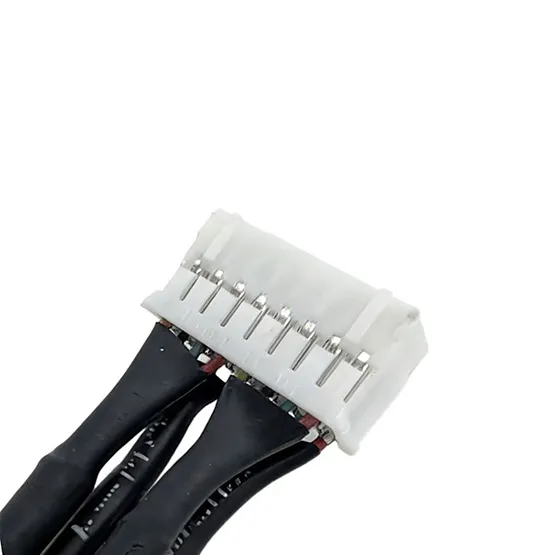

Interface and connection customization
Adaptation to specific installation environments
We support projects from sample development to batch production, ensuring stable and consistent performance.

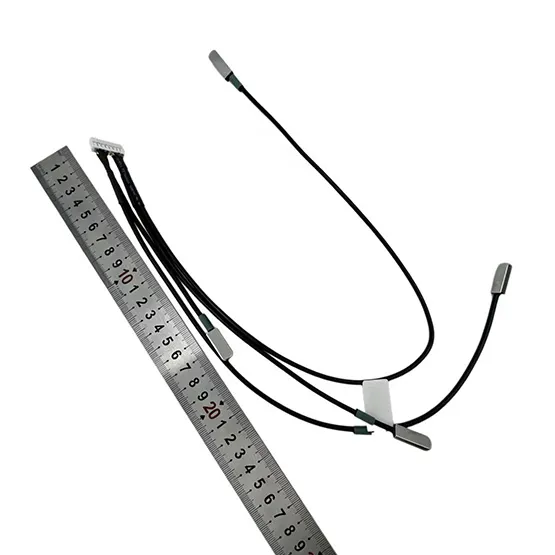

Mechanical Structure
Material: SUS304 stainless steel
Sensor head size: 20 × 7.5 × 3.6 mm (customizable)
Detection: Four-point distributed sensing
Installation: Surface mounting or embedded integration
Performance & Reliability
The EG-D002 is designed for reliable operation in transmission systems:
High accuracy temperature detection (±0.5°C)
Stable performance across wide temperature range (-55°C to 125°C)
Resistance to environmental factors such as heat and aging conditions
Consistent measurement across multiple sensing points
Supports predictive maintenance and fault prevention in electrical systems.
How to Select This Sensor
The EG-D002 is recommended when your application requires:
Multi-point temperature monitoring
Detection of abnormal heat in transmission or electrical systems
High accuracy digital temperature measurement
Integration into monitoring or control systems
For applications requiring different sensor layouts or integration methods, customization is available.
FAQ
Q: What is the advantage of four-point detection?
A: It allows monitoring of multiple positions simultaneously, improving fault detection accuracy.
Q: Can the sensor size be customized?
A: Yes, the sensor head dimensions can be adjusted based on requirements.
Q: Is this suitable for transmission systems?
A: Yes, it is specifically designed for fault monitoring in transmission systems.
Q: Do you support OEM customization?
A: Yes, full OEM and integration support is available.
Request Technical Support
For detailed specifications or customization inquiries:
Request datasheets
Share your application requirements
Confirm sample availability and production lead time
Our engineering team will support your project from design to production.
