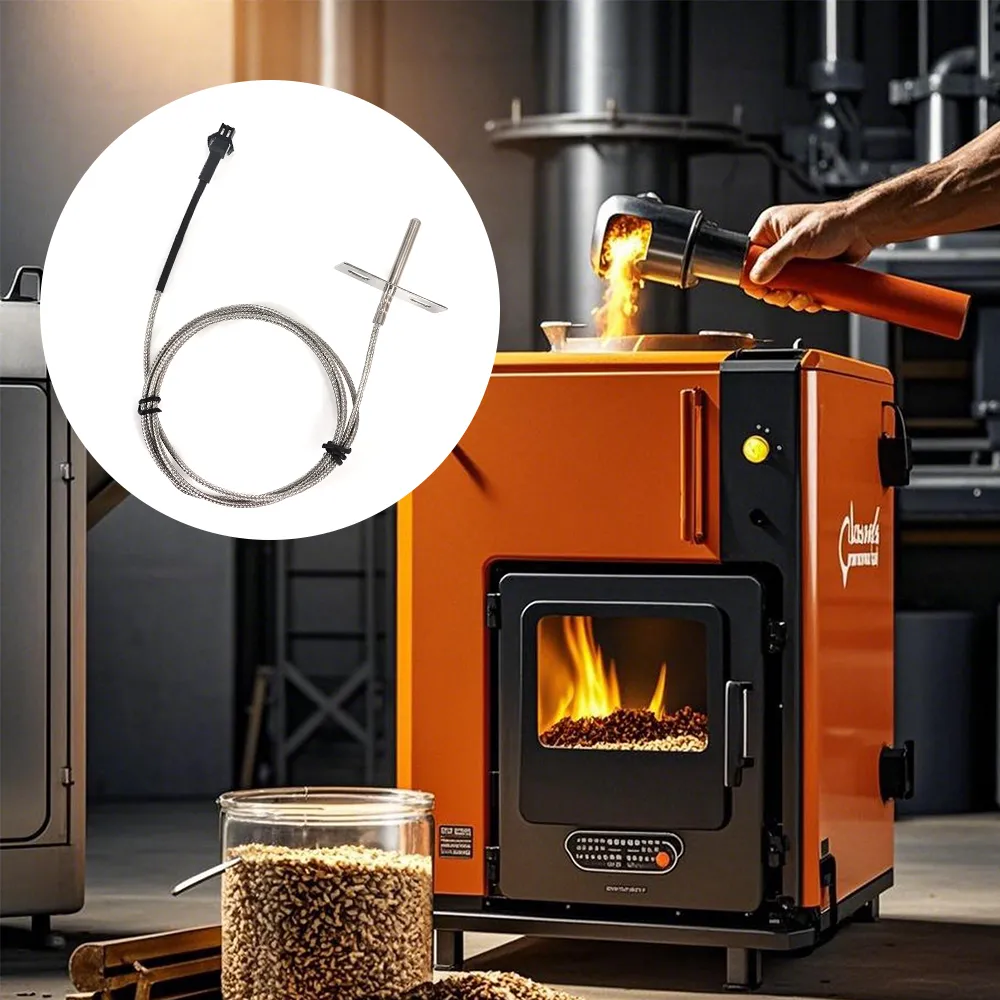

| Application | Temperature Detection Inside The Pellet Furnace |
| Material | Stainless steel |

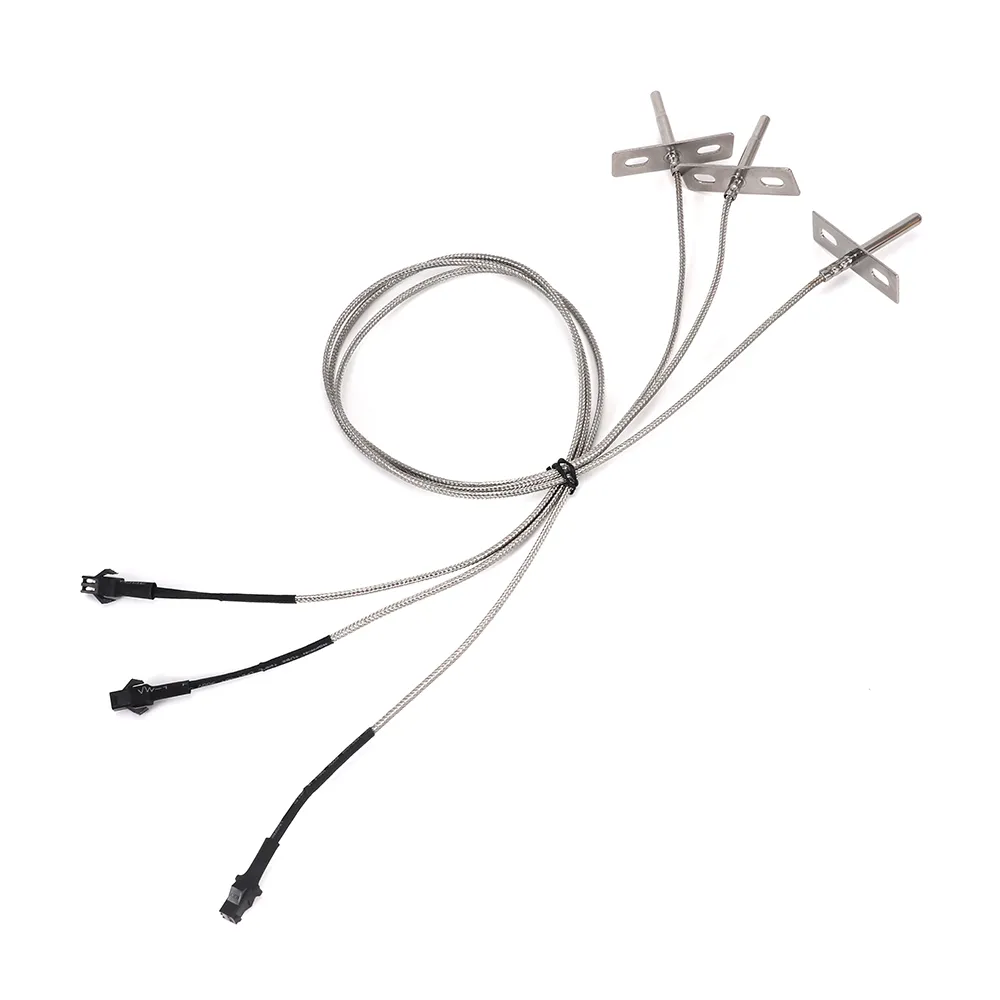

| Sensor Head Dimension | Flange Plate: L45×W14×φ4.8×L45 mm（Installation hole: φ4.0×8.5mm - 2） |
| Operating Temperature Range | -50℃～+450℃ |
| Accuracy | PT100, PT200, PT1000 (customizable to customer requirements) |
| Response Time | t≈8s (In the air) |
| Thermal Time Constant | t≈8s (In the air) |
| Withstand Voltage | AC1200V |
| Insulation Resistance | DC500V ＞100MΩ |
| Resistance Value | PT100, PT200, PT1000 (customizable to customer requirements) |
| B Value | TCR=3850ppm/K (customizable to customer requirements) |
