The EG-P002 PTC Food Temperature Sensor is designed for food temperature detection applications, including food thermometers and thermal monitoring during food processing.
With a food-grade 304 stainless steel probe and stable sensing performance, this sensor is suitable for environments requiring reliable temperature measurement and material safety compliance.
As an OEM manufacturer, we provide custom PTC temperature sensor solutions tailored for integration into food thermometers and temperature control systems.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | EG-P002 |
| Sensor Type | PTC Temperature Sensor |
| Resistance @25°C | 10KΩ |
| B Value (25/50) | 3950KΩ |
| Operating Temperature Range | -50°C to +380°C |
| Accuracy | ±1% |
| Response Time | ~9s (in air) |
| Thermal Time Constant | ~9s (in air) |
| Probe Material | Food-grade 304 Stainless Steel |
| Sensor Head Diameter | Ø3.8 mm |
| Withstand Voltage | AC 1500V |
| Insulation Resistance | ≥100MΩ (DC 500V) |
Key Features
Food-grade 304 stainless steel probe suitable for food contact environments
Wide operating temperature range up to 380°C
Stable resistance characteristics for consistent measurement
Compact probe size (Ø3.8 mm) for easy insertion into food products
Reliable electrical insulation performance
Suitable for integration into food thermometers and temperature monitoring devices
Typical Applications
The EG-P002 is designed for food-related temperature measurement scenarios, including:

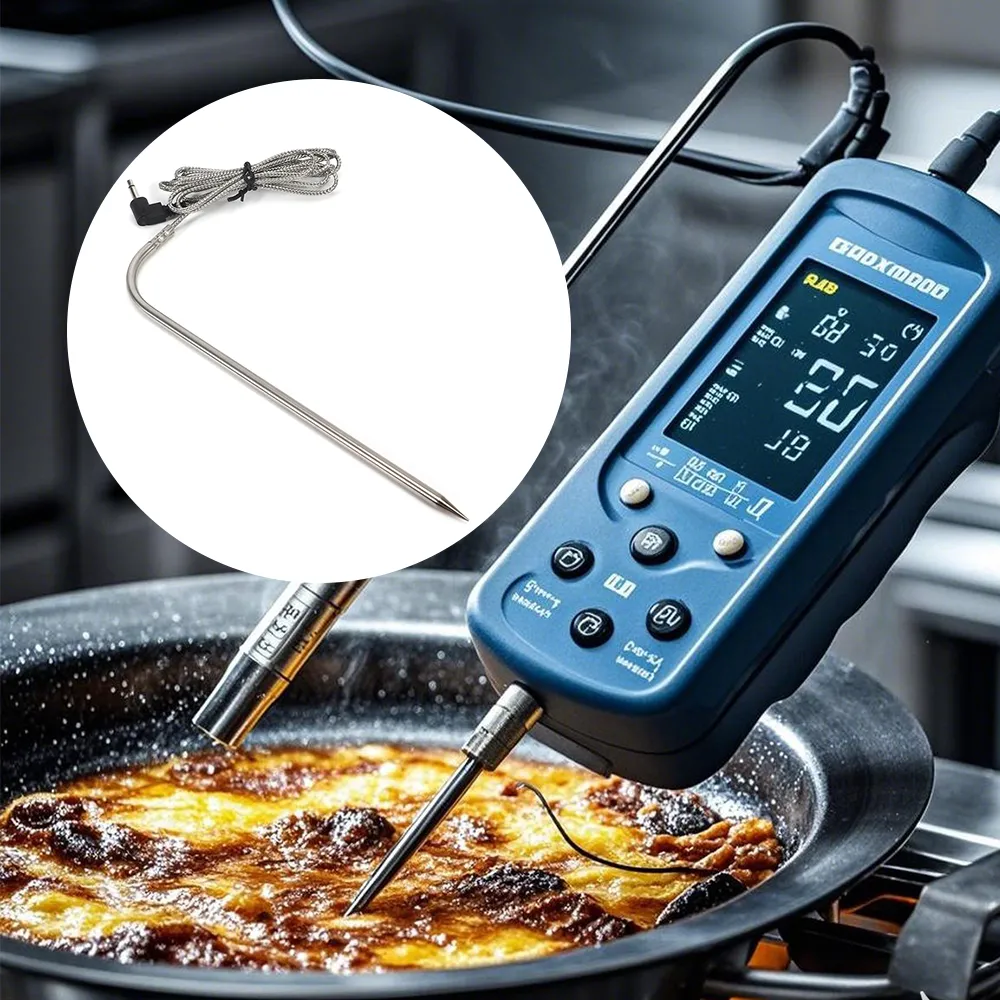

Food thermometers
Food temperature detection during cooking and processing
Kitchen appliances requiring temperature monitoring
Industrial food processing equipment
Temperature control in food preparation systems
It is suitable for applications requiring direct or indirect temperature measurement in food environments.
Custom PTC Temperature Sensor Solutions
As a professional OEM supplier, we provide customization options for food temperature sensing applications:
Resistance value and parameter customization
Probe length and structure adjustment
Cable type, insulation, and connection methods
Integration into thermometer devices or control systems
High-temperature resistant design optimization
We support development from sample evaluation to mass production, ensuring consistent product quality.

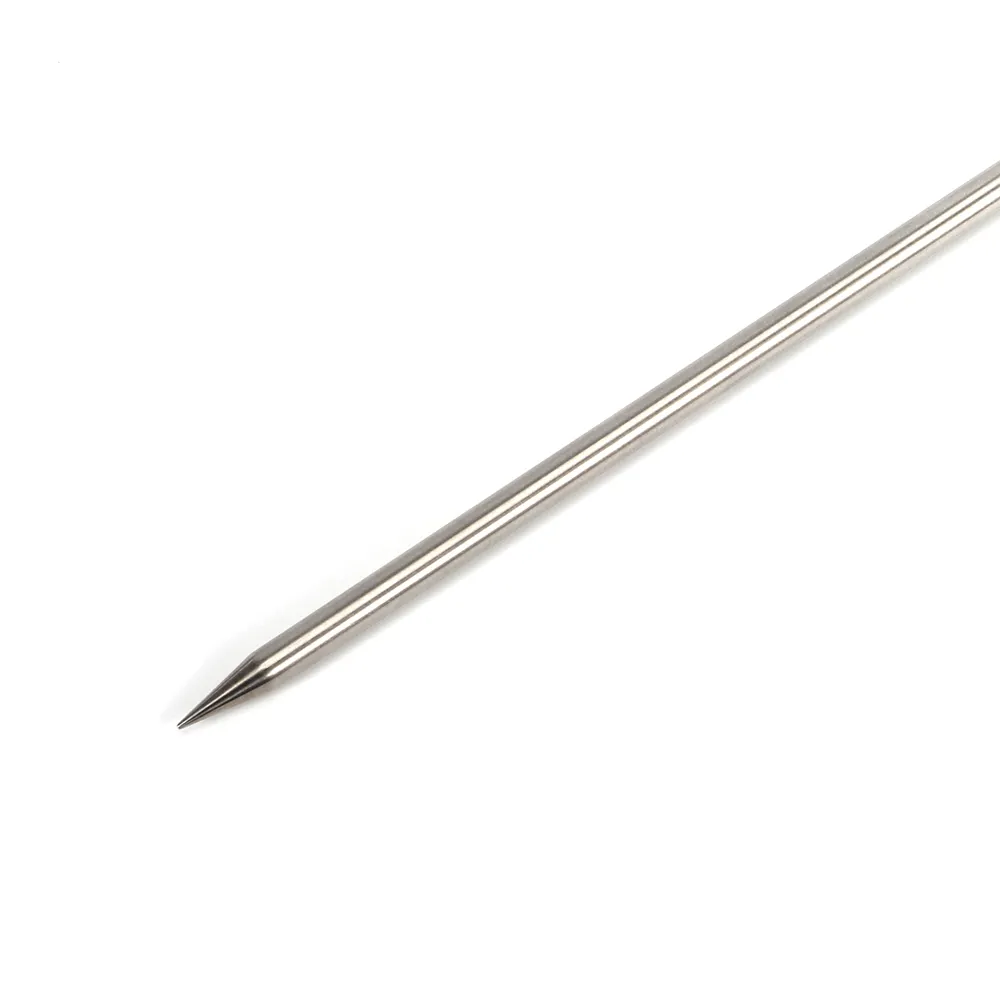

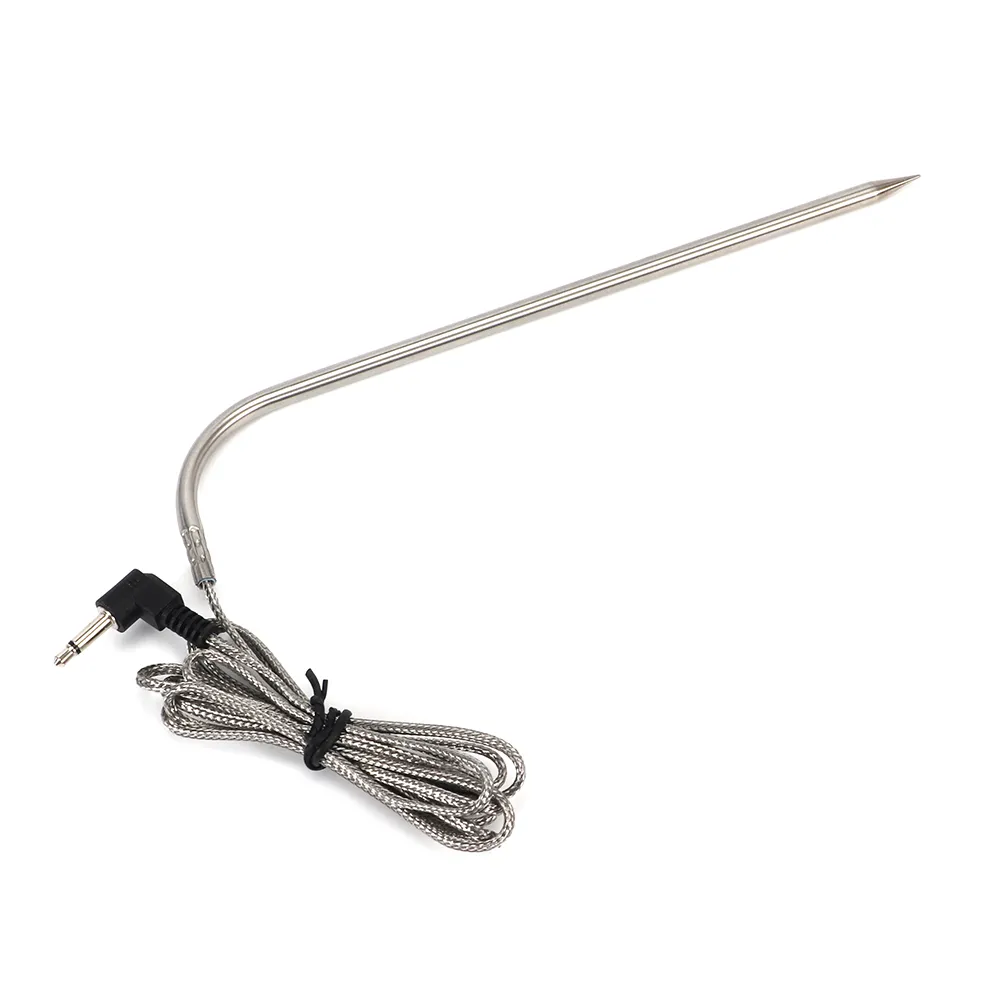

Mechanical Structure
Probe material: Food-grade 304 stainless steel

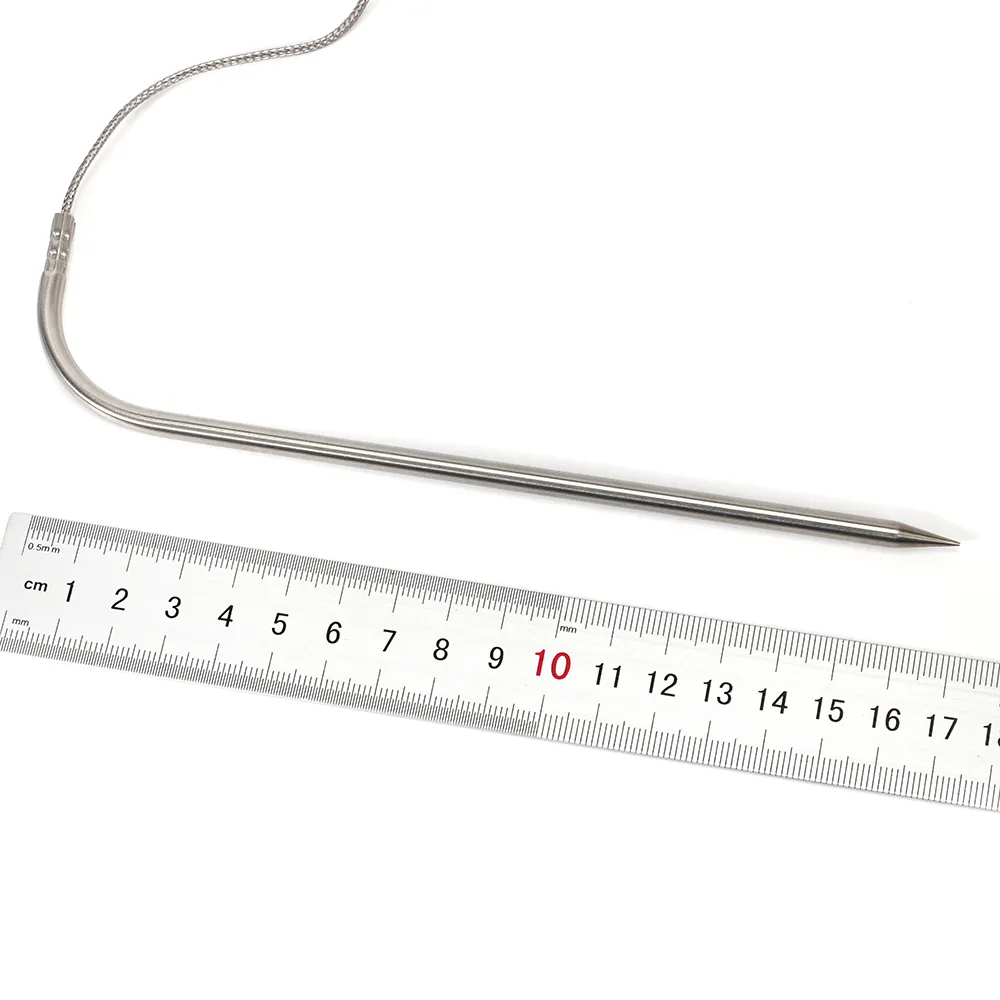

Probe diameter: Ø3.8 mm
Mounting: Insert-type temperature sensing
Output: Wire or customized connection interface
Performance & Reliability
The EG-P002 is designed for stable performance in food temperature measurement:
Insulation resistance ≥100MΩ (DC 500V)
Withstand voltage up to AC 1500V
Resistance consistency control
Thermal response verification
Suitable for repeated use in temperature detection environments
How to Select This Sensor
The EG-P002 is recommended when your application requires:
Temperature detection in food or cooking environments
Use of food-grade stainless steel probe materials
Operation in wide temperature ranges up to 380°C
Integration into food thermometers or temperature control systems
For applications requiring specific probe dimensions or integration methods, customization is available.
FAQ
Q: Is the probe suitable for food contact?
A: Yes, it uses food-grade 304 stainless steel material.
Q: Can the probe size be customized?
A: Yes, probe dimensions can be adjusted based on requirements.
Q: Is this sensor suitable for high-temperature cooking environments?
A: Yes, it supports temperatures up to 380°C.
Q: Do you support OEM customization?
A: Yes, full OEM and integration support is available.
Request Technical Support
For detailed specifications or customization inquiries:
Request datasheets
Share your application requirements
Confirm sample availability and production lead time
Our engineering team will support your project from design to production.
