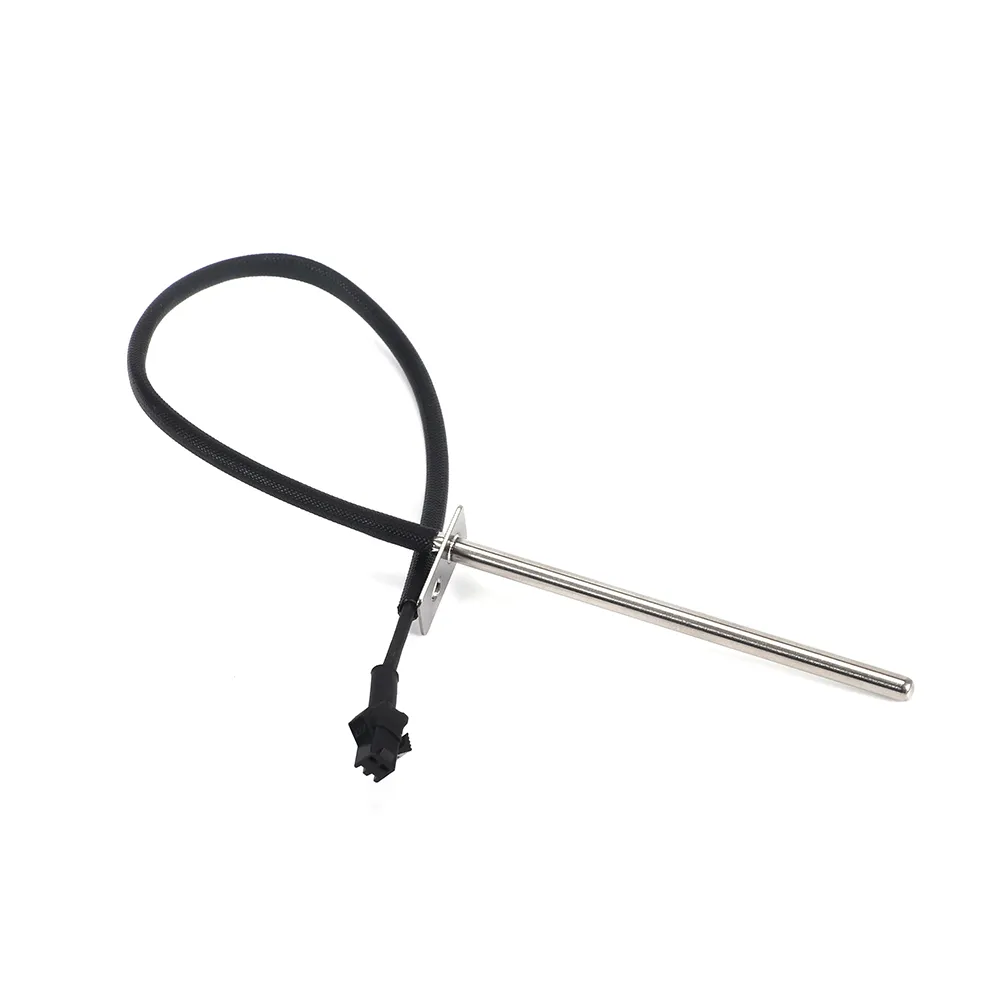

The EG-P001 PTC Temperature Sensor is designed for temperature detection inside pellet stoves and high-temperature furnace environments.
With a stainless steel probe structure and stable resistance characteristics, this sensor is suitable for applications requiring reliable temperature monitoring under elevated temperature conditions.
As an OEM manufacturer, we provide custom PTC temperature sensor solutions with flexible configurations to meet specific installation and system requirements.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | EG-P001 |
| Sensor Type | PTC Temperature Sensor |
| Resistance Type | PT100 / PT200 / PT1000 (Customizable) |
| Temperature Coefficient (TCR) | 3850 ppm/K (Customizable) |
| Operating Temperature Range | -50°C to +250°C |
| Accuracy | PT100 / PT200 / PT1000 |
| Response Time | ~8s (in air) |
| Thermal Time Constant | ~8s (in air) |
| Probe Material | 304 Stainless Steel |
| Sensor Head Diameter | Ø4.7 / Ø5 mm |
| Withstand Voltage | AC 1200V |
| Insulation Resistance | ≥100MΩ (DC 500V) |
Key Features
Suitable for high-temperature environments up to 250°C
Stable resistance characteristics for continuous temperature monitoring
304 stainless steel probe for durability and thermal conductivity
Standard platinum resistance types (PT100 / PT200 / PT1000) available
Compact probe size for installation inside heating systems
Reliable electrical insulation performance
Typical Applications
The EG-P001 is specifically designed for heating and furnace temperature monitoring, including:

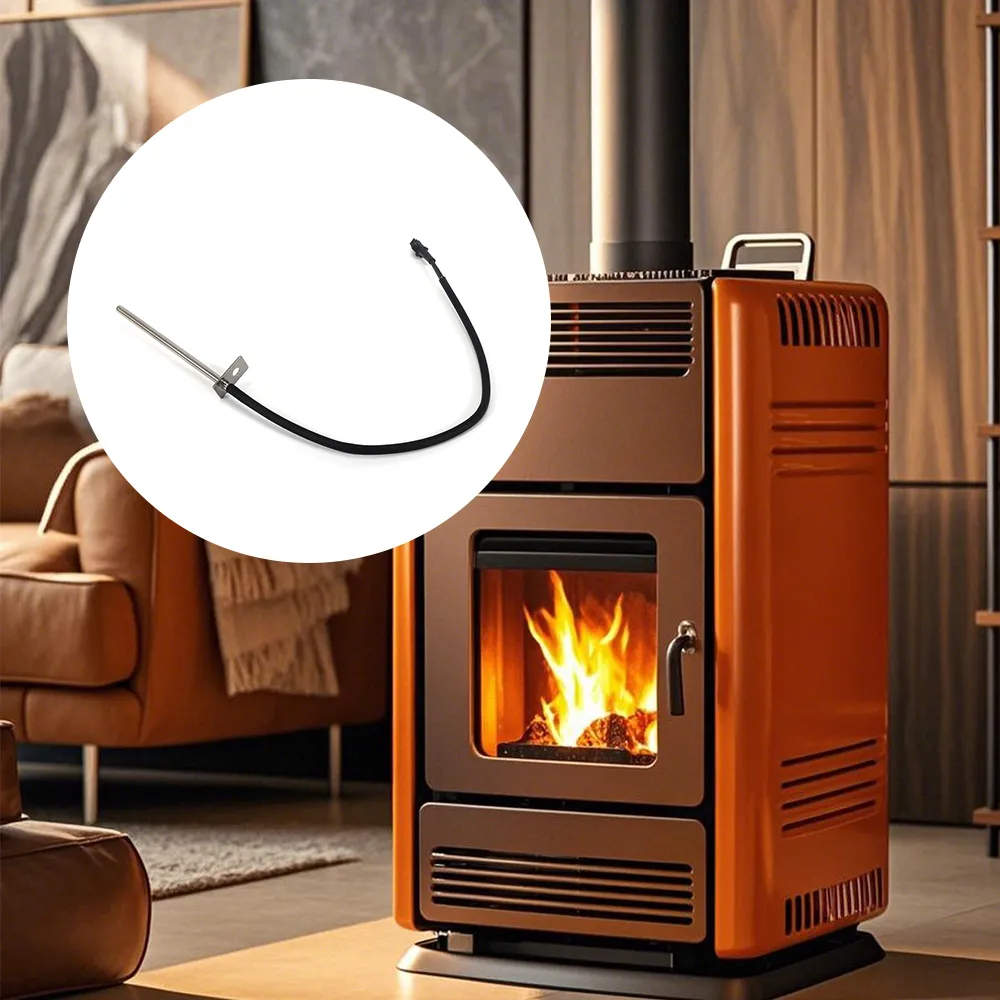

Temperature detection inside pellet stoves
Pellet furnace internal temperature monitoring
Heating system temperature control
Industrial heating equipment
Solid fuel combustion systems
It is suitable for applications requiring stable sensing under continuous high-temperature conditions.
Custom PTC Temperature Sensor Solutions
As a professional OEM supplier, we offer customization based on application requirements:
Resistance type selection (PT100 / PT200 / PT1000)
Probe diameter and length adjustment
Cable type, insulation, and connection method
High-temperature resistant design optimization
Integration into heating system assemblies
We support development from sample validation to batch production, ensuring consistent quality and performance.

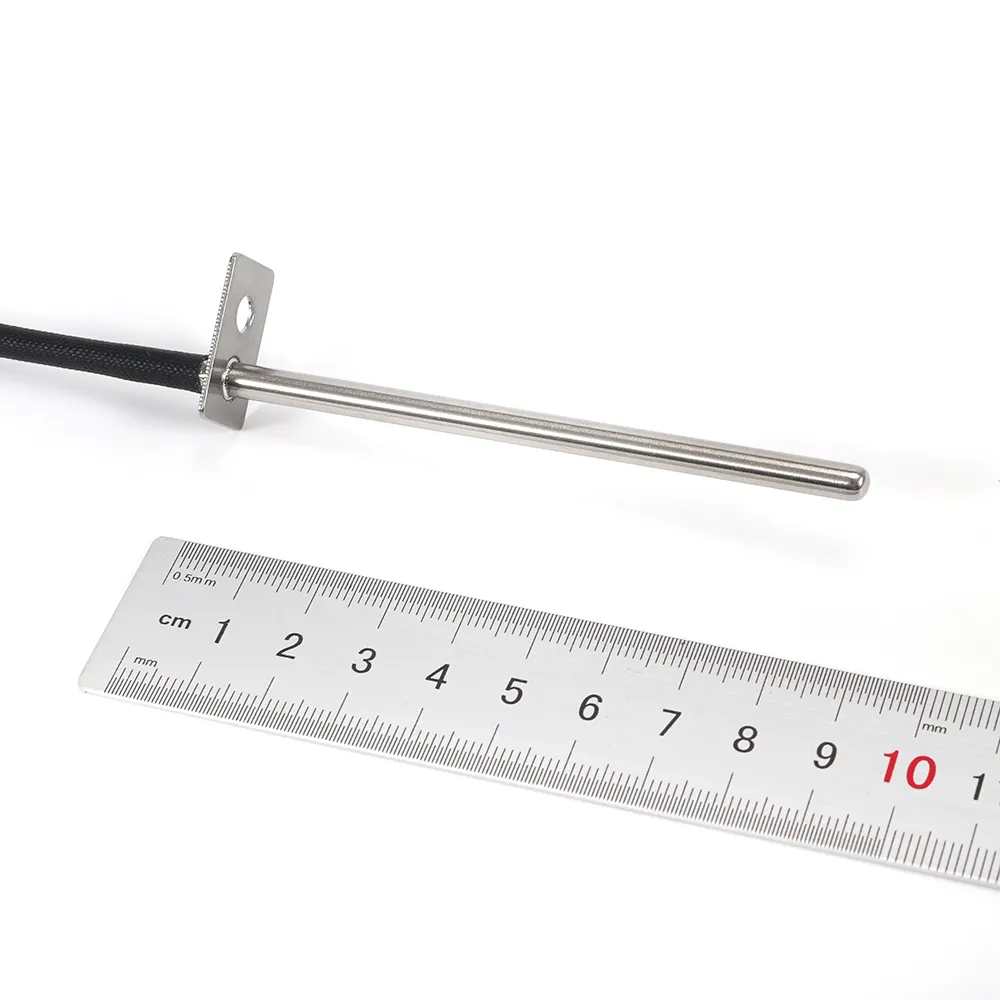

Mechanical Structure
Probe material: 304 stainless steel
Probe diameter: Ø4.7 mm / Ø5 mm
Mounting: Inserted or embedded into heating system

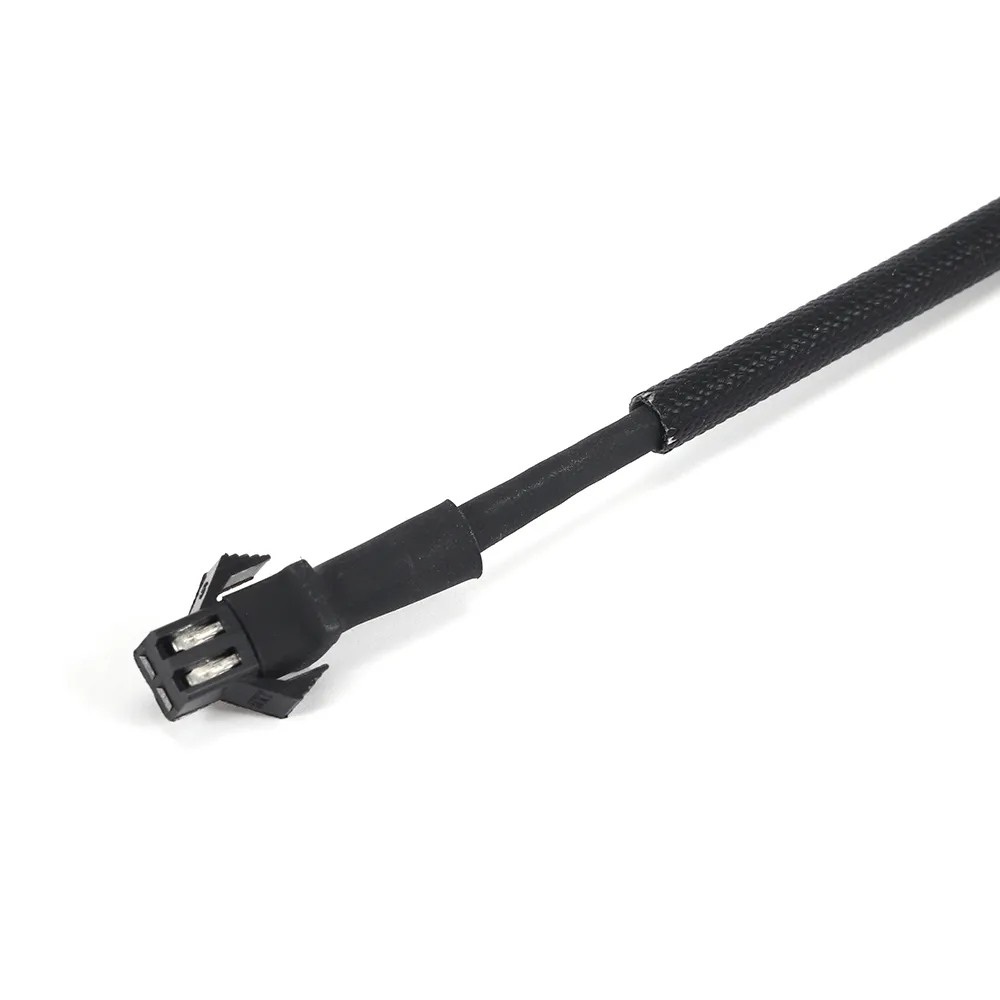

Output: Wire or customized connection interface
Performance & Reliability
The EG-P001 is designed for stable operation in heating environments:
High insulation resistance (≥100MΩ)
Withstand voltage up to AC 1200V
Resistance consistency control
Thermal response verification
Designed for continuous high-temperature operation
Ensuring reliable performance in pellet stoves and heating systems.
How to Select This Sensor
The EG-P001 is recommended when your application requires:
Temperature detection inside pellet stoves or furnaces
Operation in high-temperature environments up to 250°C
Use of PT100 / PT200 / PT1000 resistance types
Stable and continuous temperature monitoring
For applications requiring different probe structures or installation methods, customization is available.
FAQ
Q: What resistance types are available?
A: PT100, PT200, and PT1000 are available and customizable.
Q: Is this sensor suitable for high-temperature environments?
A: Yes, it operates up to 250°C.
Q: Can probe dimensions be customized?
A: Yes, probe size and structure can be adjusted based on requirements.
Q: Do you support OEM production?
A: Yes, we provide full OEM customization services.
Request Technical Support
For detailed specifications or customization inquiries:
Request datasheets
Share your application requirements
Confirm sample availability and production lead time
Our engineering team will support your project from design to production.
