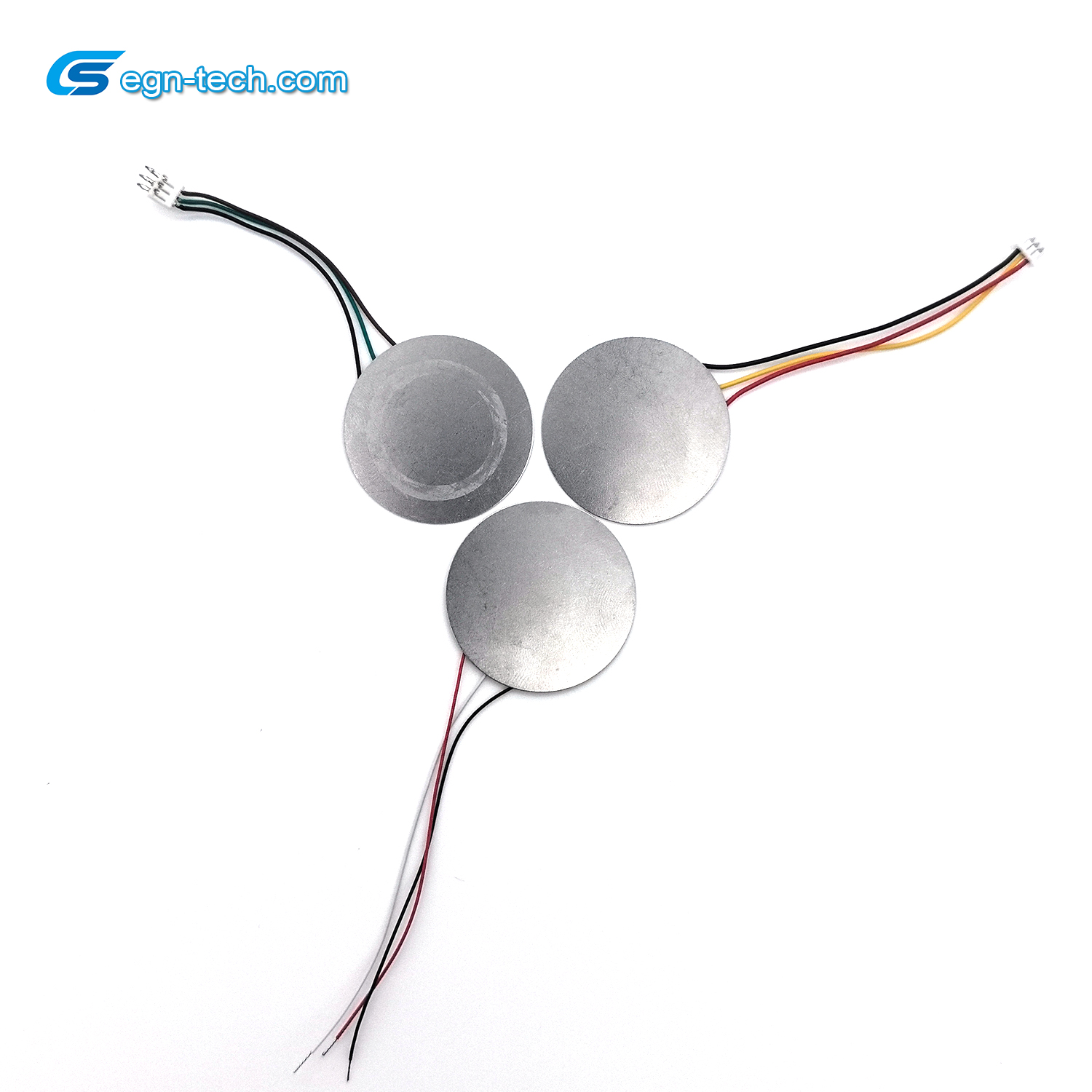

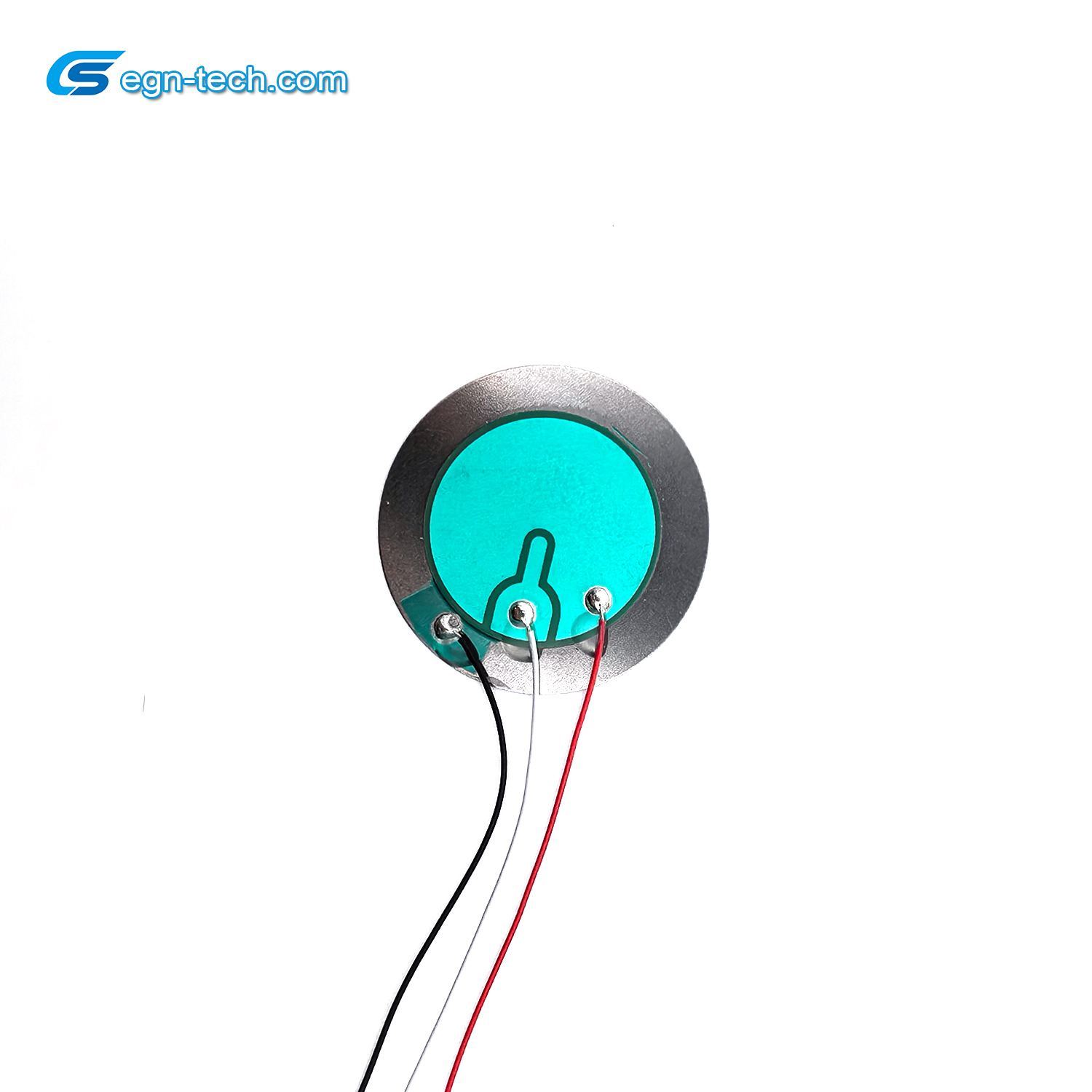

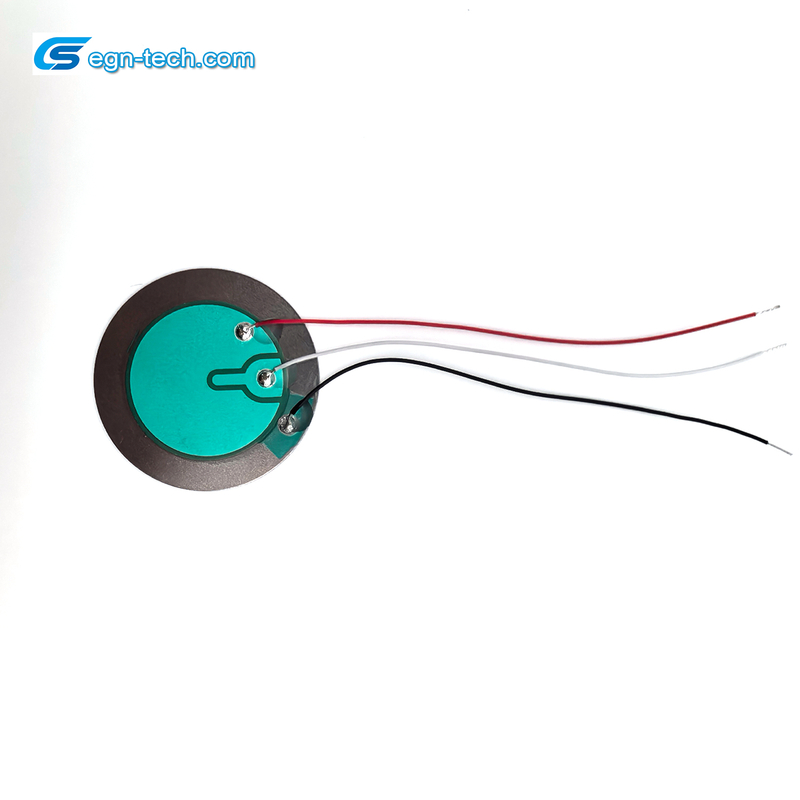

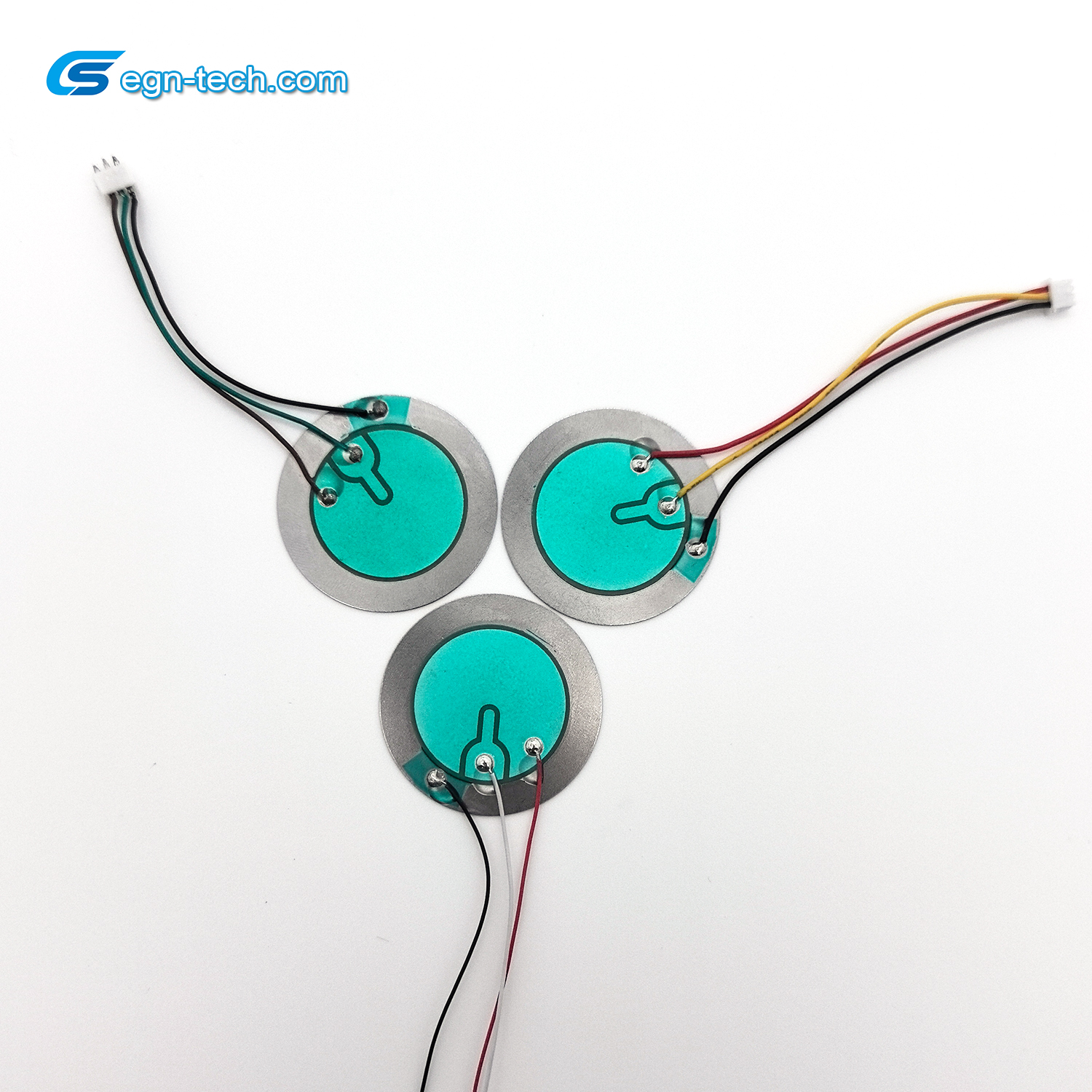

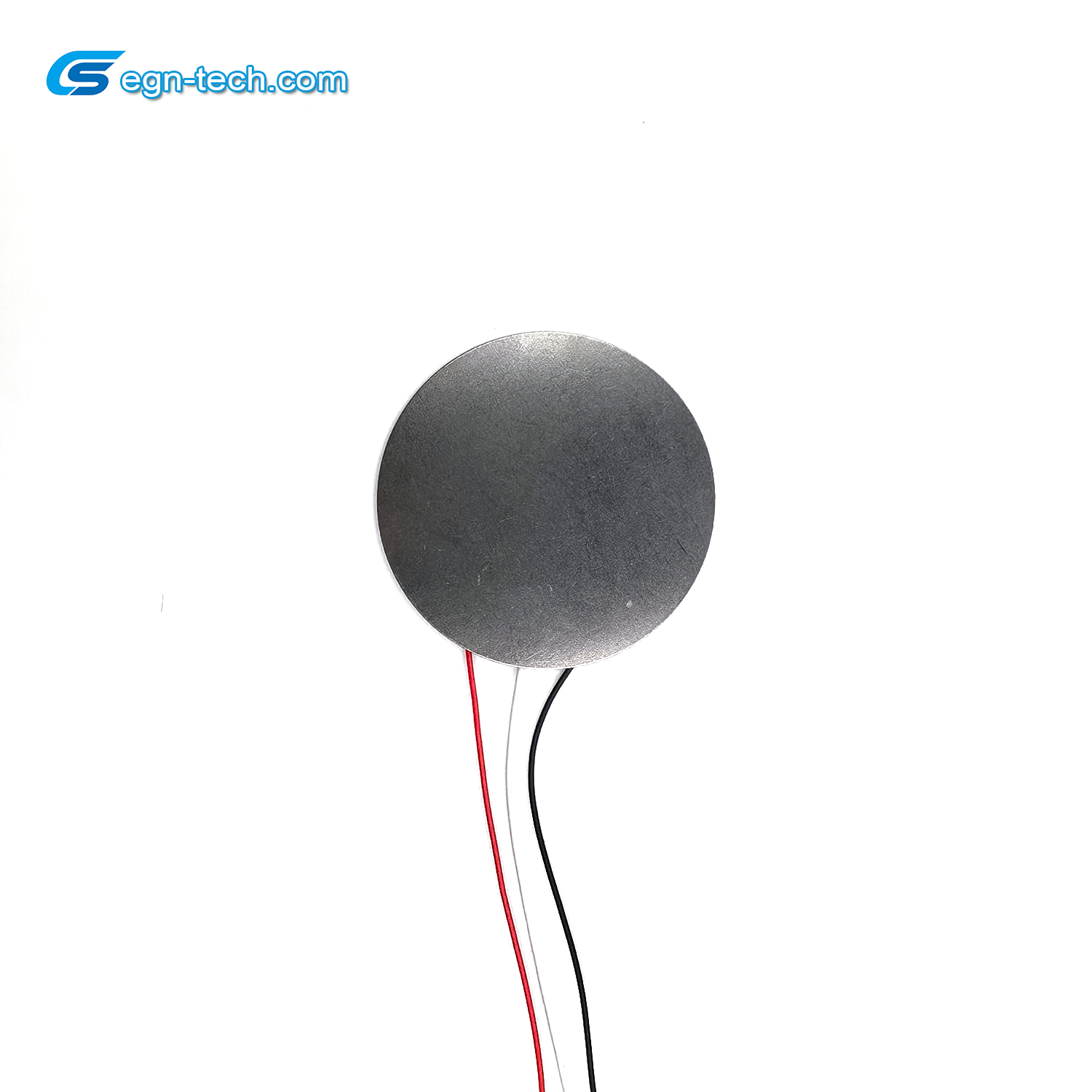

Manufacturer Dgegt Customized High Quality 85dB Thin Piezo Sounder Buzzer Alarm Without Terminal

This piezoelectric buzzer is an electronic device that generates sound using the piezzoelectric effect. When power is connected, the multivibrator starts to oscillate, outputting an audio signal, and the impedance matcher drivers the piezoelectric diaphragm to produce sound.

  • FT-34.7G-B2-NT

  • DGEGT

Availability:
Inquiry Add to Basket

Product Description

Basic Info.

Model NO.FT-34.7G-B2-NTMaterialMetal
CertificationRoHSCustomizedCustom-made
Connecting WiresAs requiredMaximum Input Voltage6-12VDC Max.
Transport PackageNatural Export PackingSpecificationPiezo Buzzer
TrademarkDGEGTOriginDongguan, China
HS Code8531801001Production Capacity10000000Pieces /Year


Product Description

Sound Press Level (SPL)≥85dB
Main Electrostatic Capacitance32000~45000pF (at 1KHz/1V)
Feedback Electrostatic Capacity3200~4900pF (at 1KHz/1V)
Resonance Impedance≤120Ω
Insulation Resistance≥100MΩ (at50V DC)
Resonance Frequency3.2±0.25KHz
Metal Plate DiameterΦ34.7±0.1 mm
Ceramic Disc DiameterΦ25.0±0.3 mm
Total Thickness0.55~0.570 (for reference)
