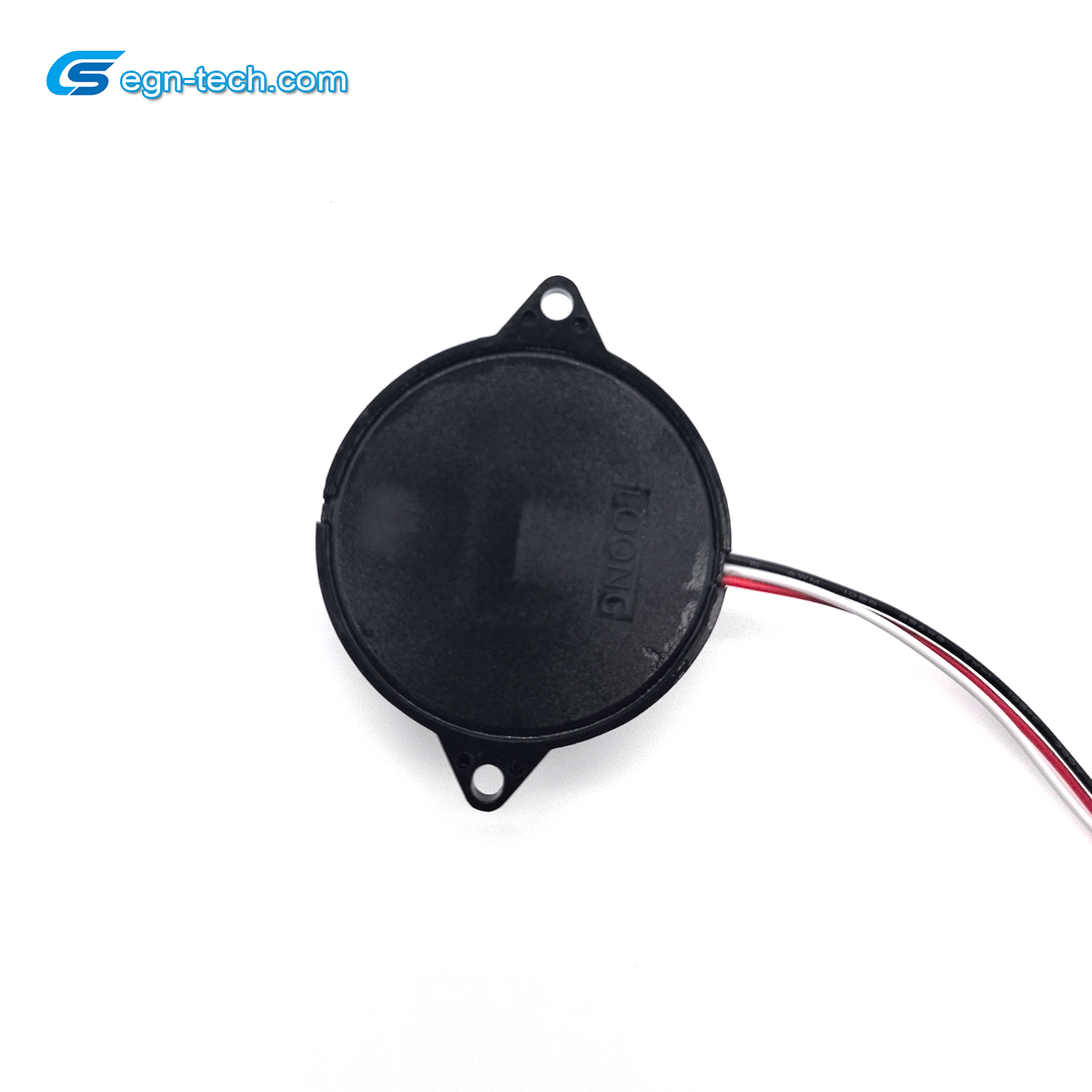

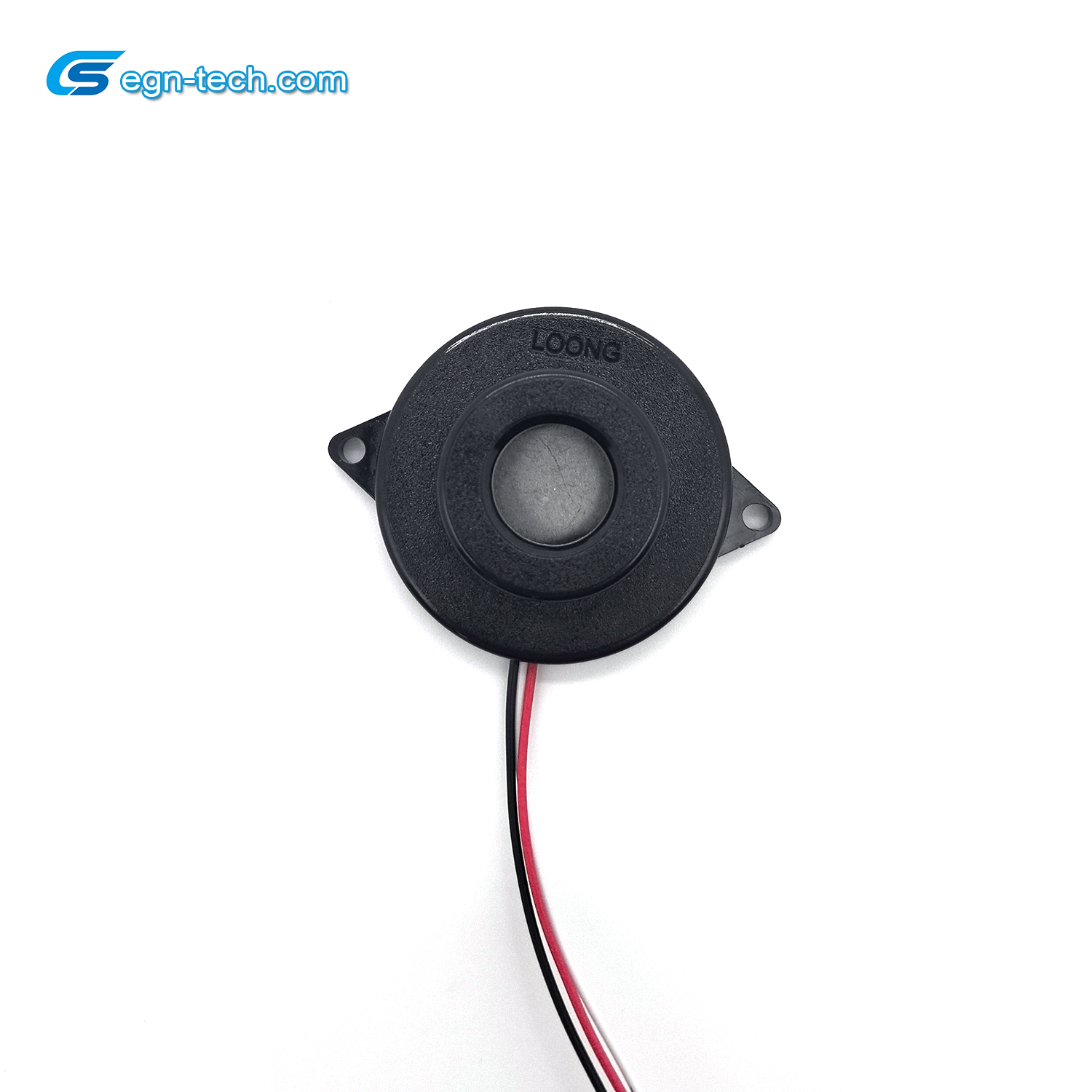

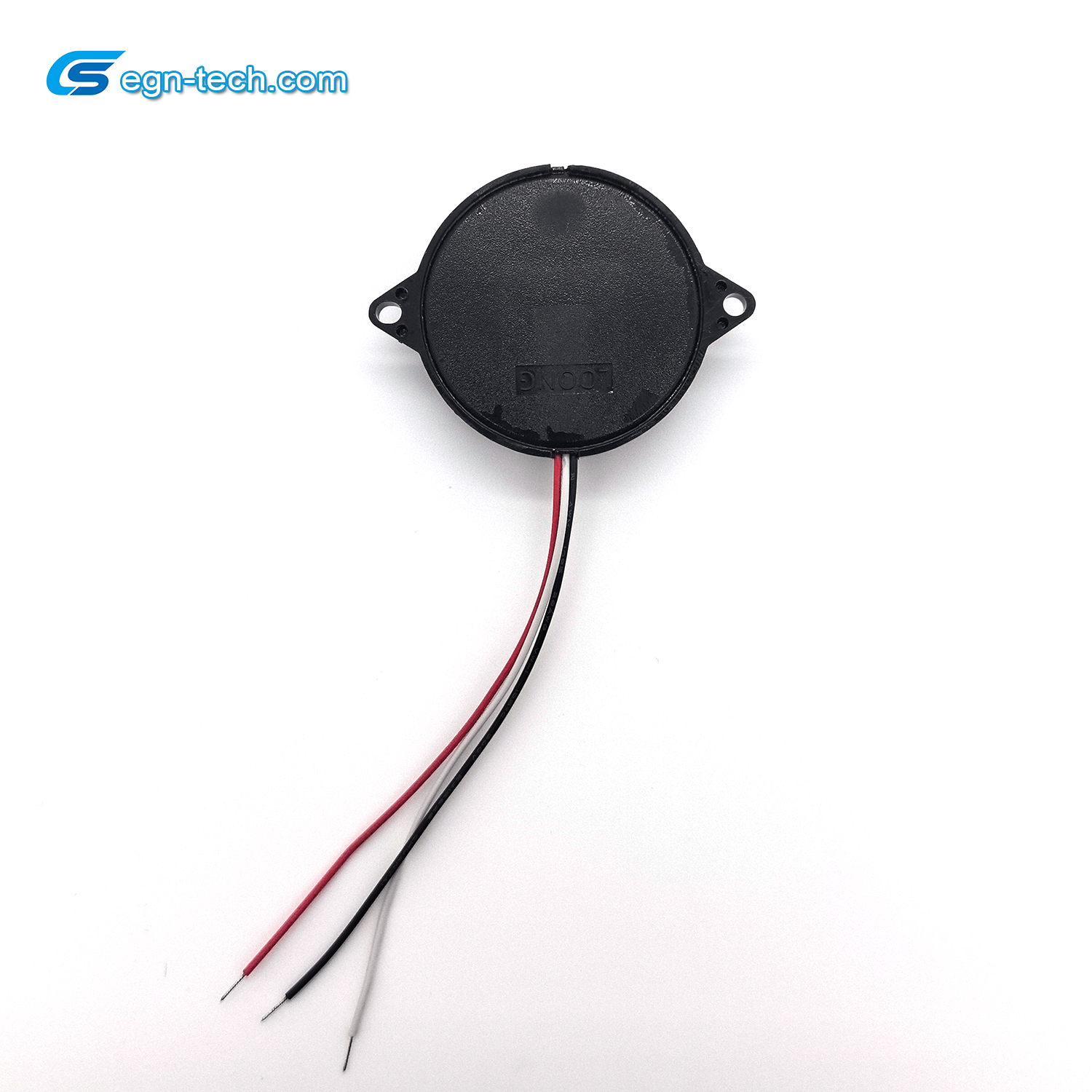

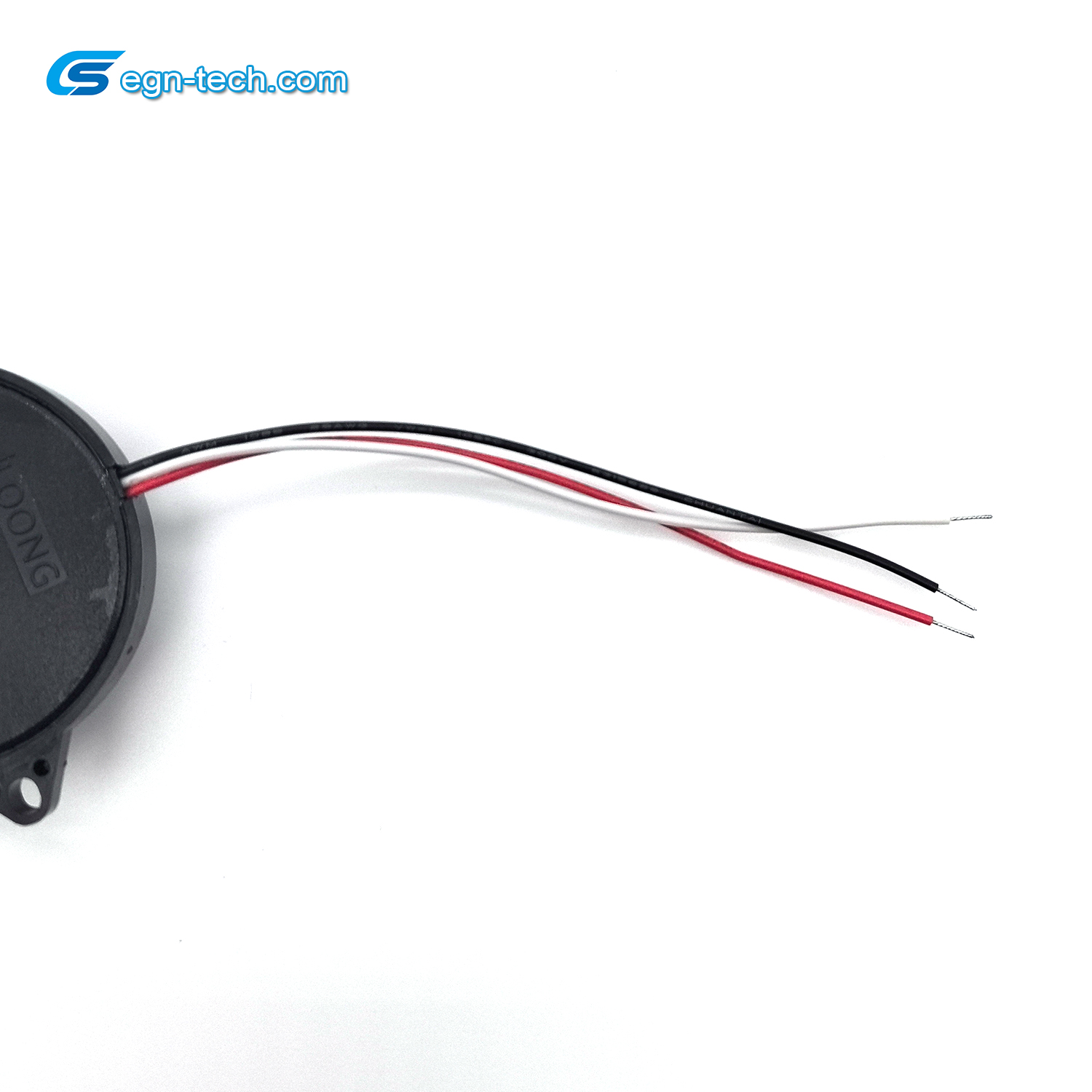

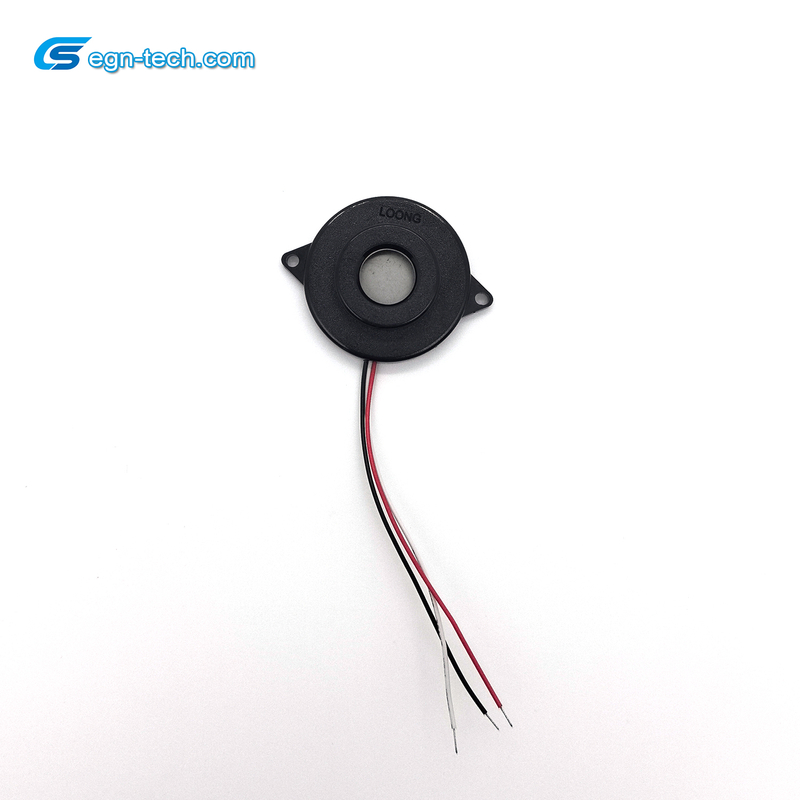

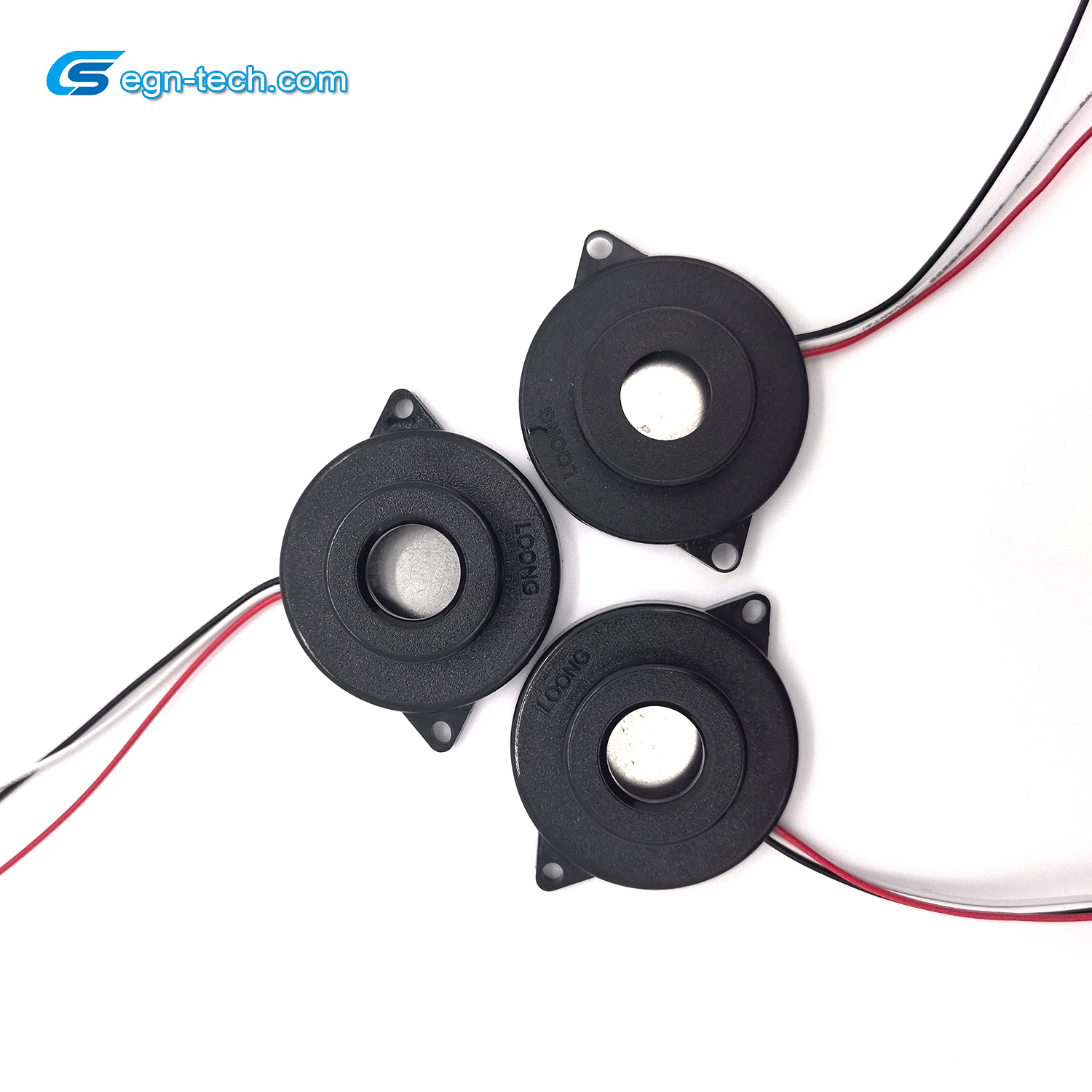

Manufacturer Dgegt Customized High Quality 85dB Piezo Buzzer Alarm Sounder

This piezoelectric buzzer is an electronic device that generates sound using the piezzoelectric effect. When power is connected, the multivibrator starts to oscillate, outputting an audio signal, and the impedance matcher drivers the piezoelectric diaphragm to produce sound.

  • 10020001

  • DGEGT

Availability:
Inquiry Add to Basket

Product Description

Basic Info.

Model NO.10020001MaterialPlastic
CertificationRoHSCustomizedCustom-made
Connecting WiresAs requiredMaximum Input Voltage6-12VDC Max.
Transport PackageNatural Export PackingSpecificationPiezo Buzzer
TrademarkDGEGTOriginDongguan, China
HS Code8531801001Production Capacity10000000Pieces /Year


Product Description

Sound Press Level (SPL)≥85dB at 300cm/3200Hz/9.0VDC
Capacitance (CM / CF)36nF ±30% / 3.6 nF at 1KHz
Operating Voltage9.0VDC
Impedance<= 400Ω
Operating Frequency3200±250Hz
Outer DiameterΦ46.4±0.3
Overall Height13.0±10.5
